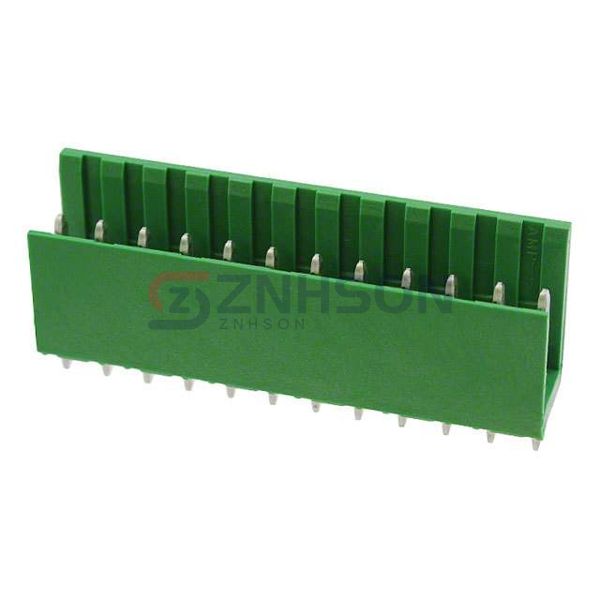

280614-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 12POS 3.96MM
$3.11
Available to order
Reference Price (USD)
1+
$2.03000
10+
$1.84400
100+
$1.58050
500+
$1.31706
1,000+
$1.12892
5,000+
$1.00097
10,000+
$0.97839
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 280614-1 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 280614-1 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.394" (10.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.642" (16.30mm)
- Insulation Height: 0.913" (23.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polycarbonate, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC08SBDN
Samtec Inc.
TSM-103-03-G-DV-A
Molex
22-28-1032
Preci-Dip
350-80-103-00-206191
Samtec Inc.
TMM-107-01-T-S-SM-P-TR
Samtec Inc.
TST-110-01-T-D
Harwin Inc.
M40-4010646R
Preci-Dip
892-18-036-20-002101
Samtec Inc.

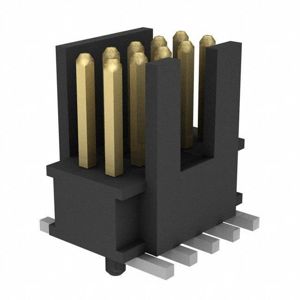

FTSH-105-01-F-DV-K-A-P-TR
