2842111-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

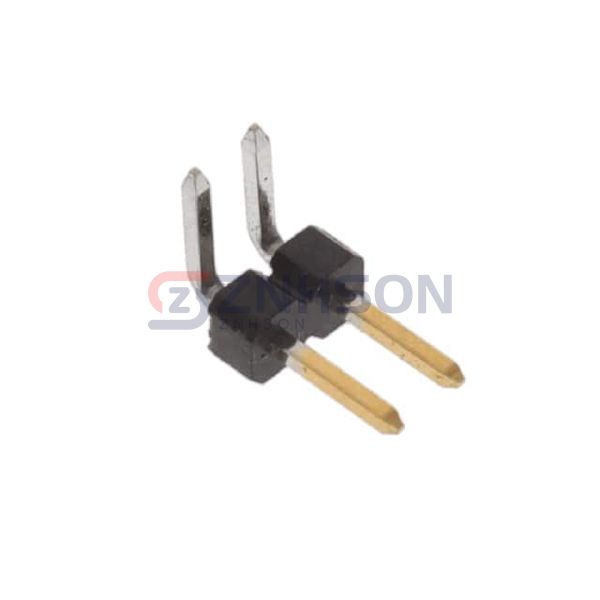

2P,2MM,BRK HDR,SRRT,2.8,0.38AU,T
$0.52
Available to order
Reference Price (USD)
1+
$0.52000
500+
$0.5148
1000+
$0.5096
1500+
$0.5044
2000+
$0.4992
2500+
$0.494
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 2842111-2 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
