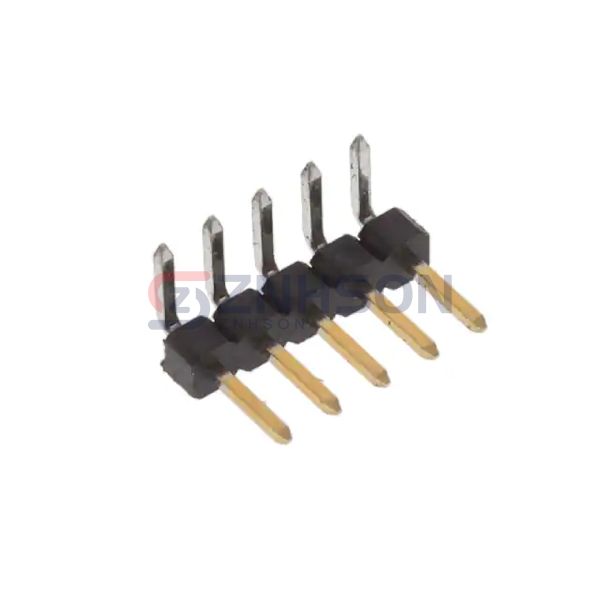

2842122-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
5P,2MM,BRK HDR,SRRT,2.8,0.1AU,BO
$0.72
Available to order
Reference Price (USD)
1+
$0.72000
500+
$0.7128
1000+
$0.7056
1500+
$0.6984
2000+
$0.6912
2500+
$0.684
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2842122-5 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2842122-5 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
Related Products
TE Connectivity AMP Connectors
9-103795-0-16
HARTING
09185607903
Samtec Inc.
TSW-115-23-L-D
3M

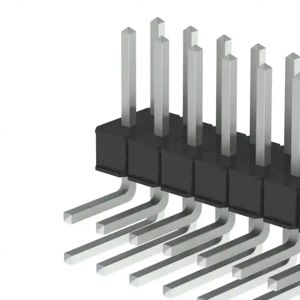

929838-04-17
Molex

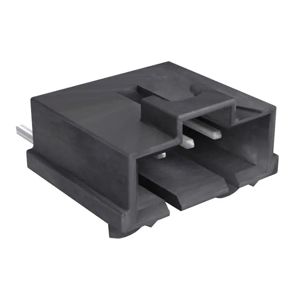

0015913044
Samtec Inc.
MMT-118-01-TM-DH-K-TR
Amphenol ICC (FCI)

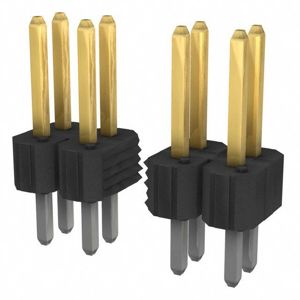

67997-228HLF
Samtec Inc.

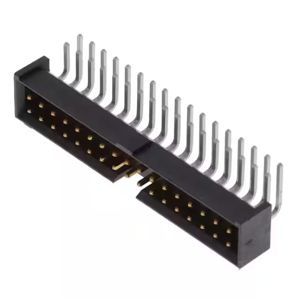

LTMM-117-02-S-D-RA
Sullins Connector Solutions

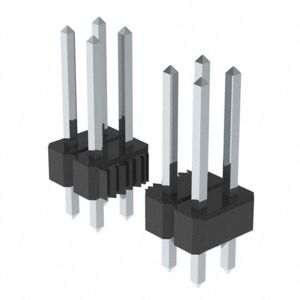

PEC08DFAN
