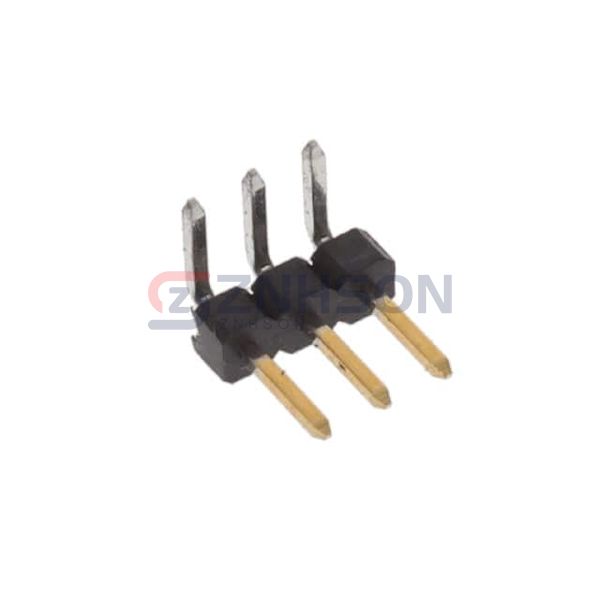

2842123-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
3P,2MM,BRK HDR,SRRT,2.8,0.38AU,B
$0.64
Available to order
Reference Price (USD)
1+
$0.64000
500+
$0.6336
1000+
$0.6272
1500+
$0.6208
2000+
$0.6144
2500+
$0.608
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2842123-3 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2842123-3 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
HTSW-132-07-G-S
Samtec Inc.
MMT-120-02-S-SH-TR
Samtec Inc.
HTSW-112-07-F-D
Preci-Dip

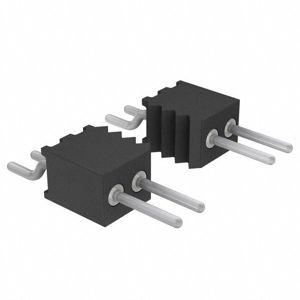

850-80-019-40-251101
TE Connectivity AMP Connectors

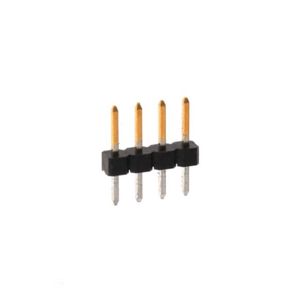

2355045-4
Samtec Inc.

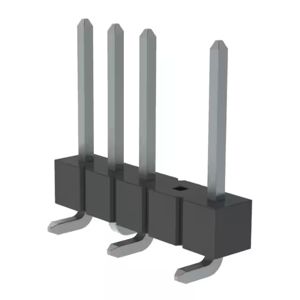

TSM-105-02-T-SV-P-002
Samtec Inc.

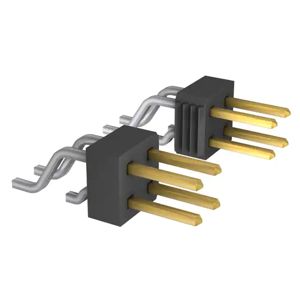

TSM-113-01-SM-DH-P-TR
Harwin Inc.

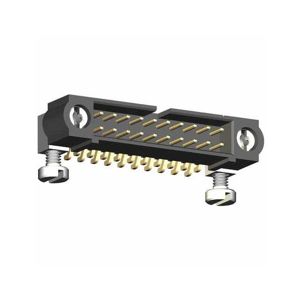

M80-5S20642MD
Samtec Inc.

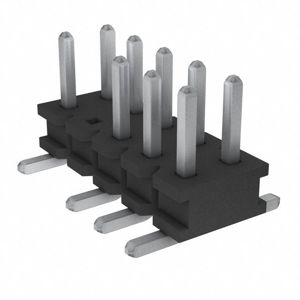

TMMH-105-01-T-DV-003
