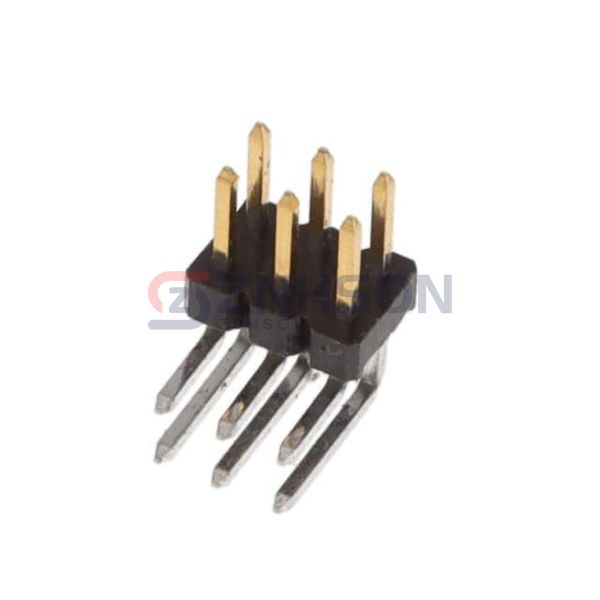

2842164-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
6P,2MM,BRK HDR,DRRT,2.8,0.76AU,B
$1.62
Available to order
Reference Price (USD)
1+
$1.62000
500+
$1.6038
1000+
$1.5876
1500+
$1.5714
2000+
$1.5552
2500+
$1.539
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2842164-3 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 2842164-3 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125VAC/DC
Related Products
Omron Electronics Inc-EMC Div
XG8W-3031
Samtec Inc.
TSW-134-14-L-S
TE Connectivity AMP Connectors
1-87258-0

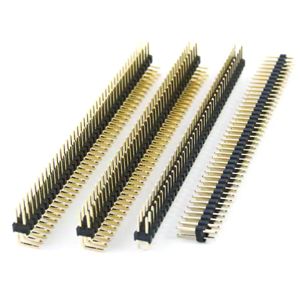

Oupiin
2011-2X22G00SB

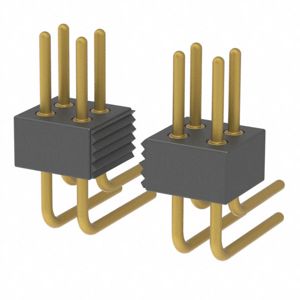

Mill-Max Manufacturing Corp.
852-10-048-20-001000

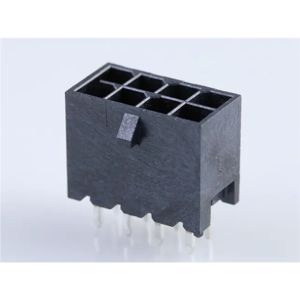

Molex
2068321201

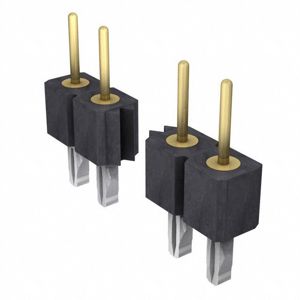

Preci-Dip
356-V3-150-00-014101

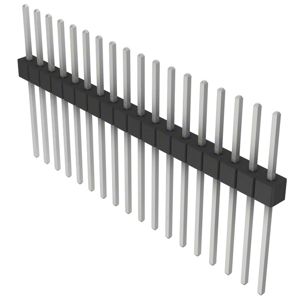

Sullins Connector Solutions
