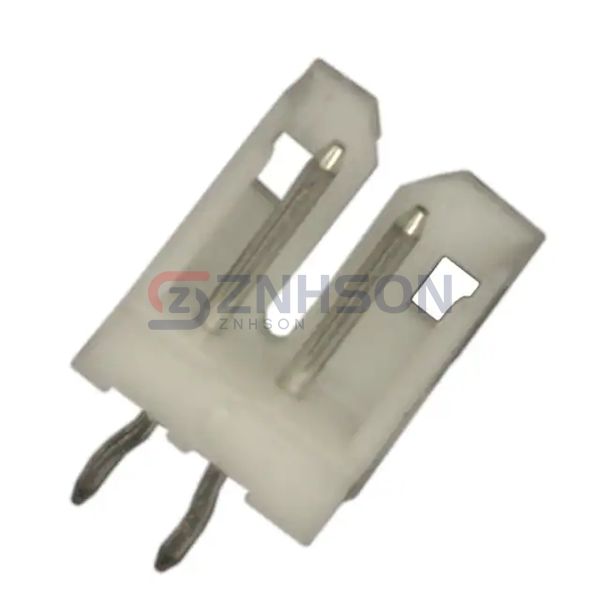

292161-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 2POS 2MM
$0.39
Available to order
Reference Price (USD)
1+
$0.31000
10+
$0.29300
100+
$0.20970
500+
$0.18202
1,000+
$0.15433
5,000+
$0.13454
10,000+
$0.12662
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 292161-2 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 292161-2 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.370" (9.40mm)
- Insulation Height: 0.268" (6.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
