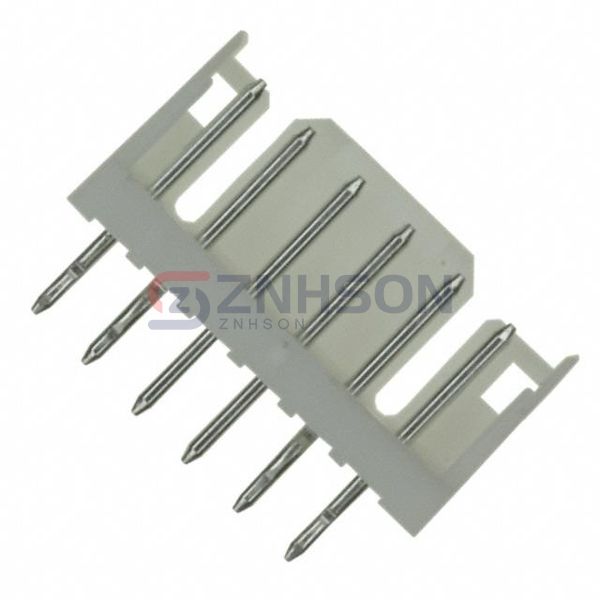

292161-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 2MM
$0.67
Available to order
Reference Price (USD)
1+
$0.51000
10+
$0.47400
100+
$0.36340
500+
$0.31600
1,000+
$0.26070
5,000+
$0.22910
10,000+
$0.21330
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292161-6 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.370" (9.40mm)
- Insulation Height: 0.268" (6.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
