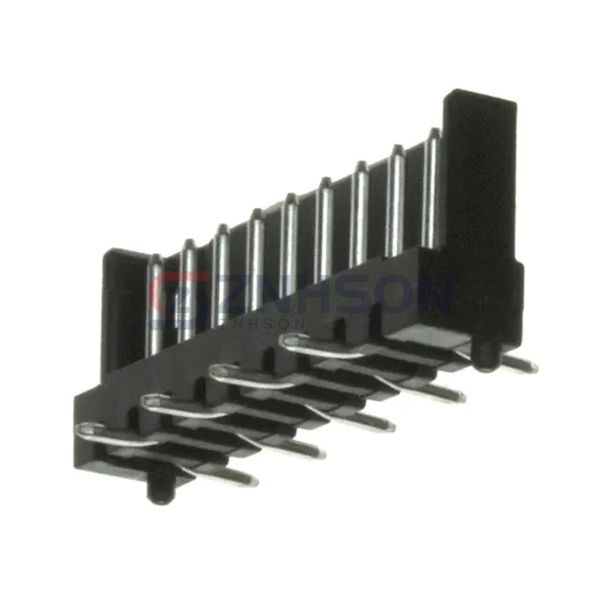

292171-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD 9POS 2MM
$1.96
Available to order
Reference Price (USD)
1+
$1.49000
20+
$1.34950
100+
$1.15650
500+
$0.96378
1,000+
$0.82610
5,000+
$0.73247
10,000+
$0.71595
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292171-9 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 292171-9 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.177" (4.50mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.307" (7.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
Related Products
Preci-Dip
832-10-064-30-001101
TE Connectivity AMP Connectors
4-103239-0-09
Samtec Inc.
FTSH-116-01-F-DV-A
Mill-Max Manufacturing Corp.
349-10-147-00-560000
Molex
0460150409
TE Connectivity AMP Connectors
5-146269-5
Samtec Inc.
MTMM-103-05-S-D-210
Oupiin
2011-1X06G00RB
Samtec Inc.

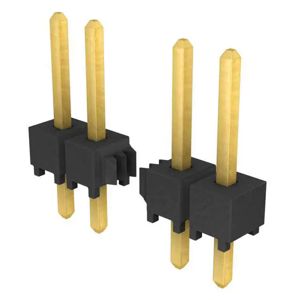

TSW-118-23-G-S
