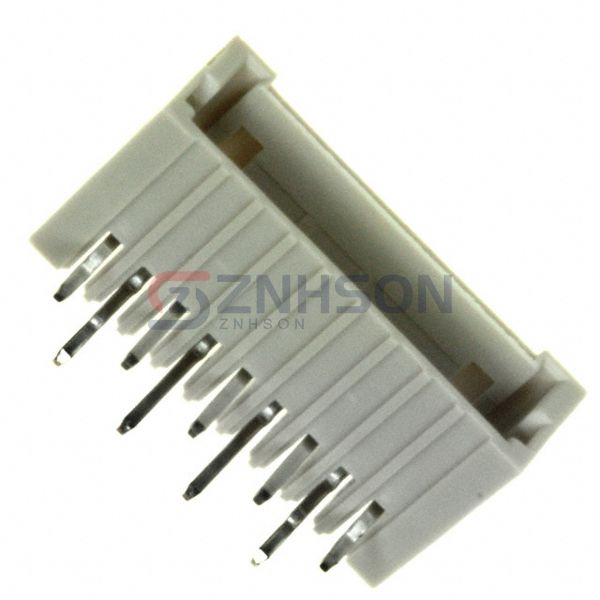

292206-9
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 9POS 1.5MM
$1.34
Available to order
Reference Price (USD)
1+
$1.05000
10+
$0.92600
100+
$0.80810
500+
$0.67344
1,000+
$0.60609
5,000+
$0.53875
10,000+
$0.51518
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292206-9 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 292206-9 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
TE Connectivity AMP Connectors
9-102975-0-38
Preci-Dip
802-80-044-66-001101
Samtec Inc.
TSW-102-22-G-S-RE
Samtec Inc.
FTSH-109-02-F-DV
Amphenol ICC (FCI)
68604-236
Preci-Dip
800-V3-014-30-001101
Samtec Inc.

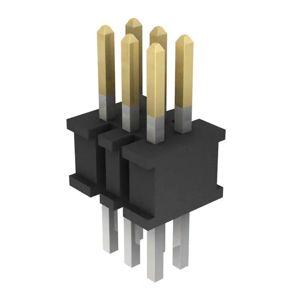

FTSH-103-02-F-D
Sullins Connector Solutions

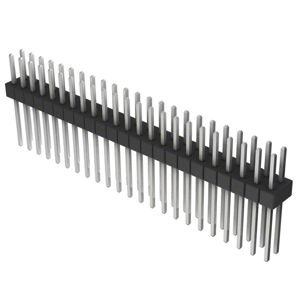

PEC23DADN
Samtec Inc.

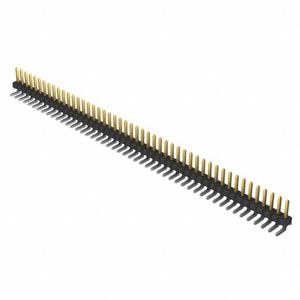

TSW-148-08-L-S-RA
