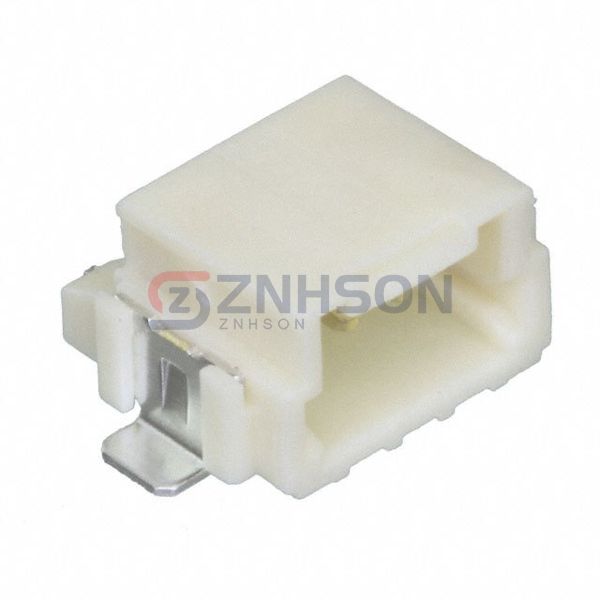

292228-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 3POS 1.5MM
$0.74
Available to order
Reference Price (USD)
700+
$0.50387
1,400+
$0.45349
2,100+
$0.42830
3,500+
$0.41570
4,900+
$0.40310
17,500+
$0.37791
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292228-3 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Solder Retention
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
