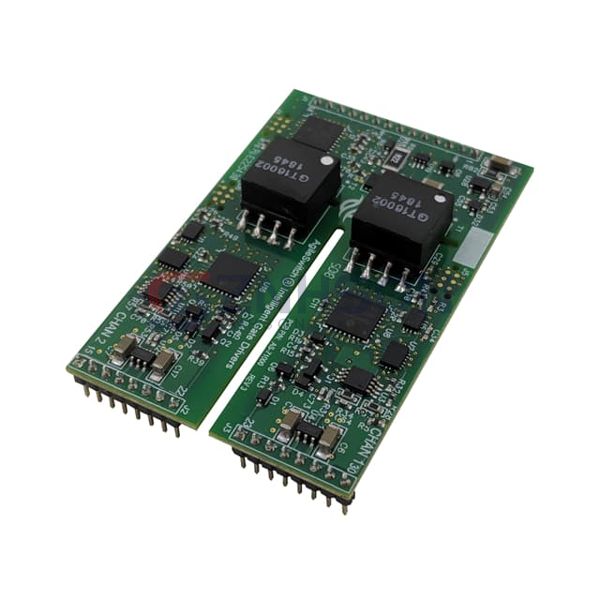

2ASC-12A1HP
Microchip Technology
Microchip Technology
SILICON CARBIDE GATE DRIVER
$174.00
Available to order
Reference Price (USD)
1+
$174.00000
500+
$172.26
1000+
$170.52
1500+
$168.78
2000+
$167.04
2500+
$165.3
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology presents the 2ASC-12A1HP as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: P-Channel MOSFET
- Voltage - Supply: 14V ~ 16V
- Logic Voltage - VIL, VIH: 1.25V, 3.5V
- Current - Peak Output (Source, Sink): 10A, 10A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 80ns, 90ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Through Hole
- Package / Case: Module
- Supplier Device Package: Module
