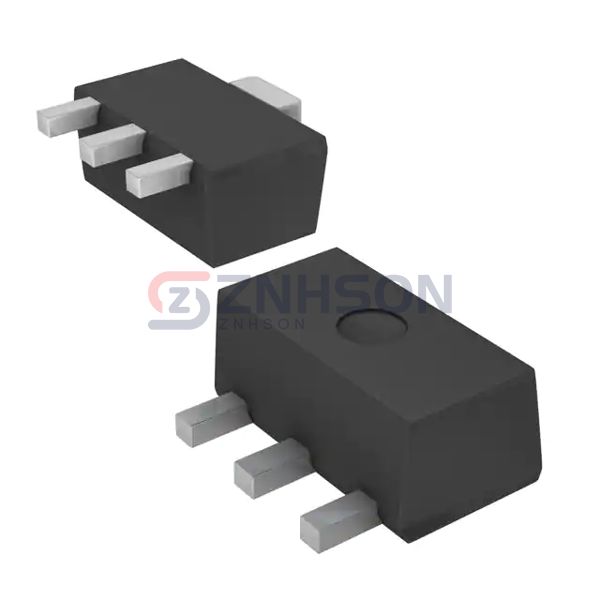

2DB1424R-13
Diodes Incorporated
Diodes Incorporated
TRANS PNP 20V 3A SOT89-3
$0.00
Available to order
Reference Price (USD)
2,500+
$0.16448
5,000+
$0.15503
12,500+
$0.14558
25,000+
$0.14400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 2DB1424R-13 Bipolar Junction Transistor (BJT) by Diodes Incorporated. This single BJT transistor is engineered for precision and reliability, featuring low saturation voltage and high current gain. Perfect for switching and amplification tasks, the 2DB1424R-13 is widely used in consumer electronics, industrial automation, and telecommunications. Its compact design and superior thermal performance make it a preferred choice for engineers worldwide. Trust Diodes Incorporated for high-quality discrete semiconductor products that meet the demands of modern electronics.
Specifications
- Product Status: Obsolete
- Transistor Type: PNP
- Current - Collector (Ic) (Max): 3 A
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 100mA, 2A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 180 @ 100mA, 2V
- Power - Max: 1 W
- Frequency - Transition: 220MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: SOT-89-3
Related Products
onsemi
BC449
onsemi
KSA1175YTA
Toshiba Semiconductor and Storage
TTC009,F(J
Micro Commercial Co
TIP126-BP
onsemi
TN6715A
onsemi
BC327TFR
Toshiba Semiconductor and Storage
2SC2655-Y(T6OMI,FM
Panasonic Electronic Components
2SD1824GSL
onsemi

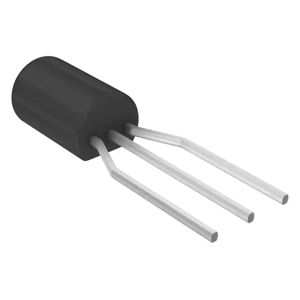

MPSW42
