2N7002KQBZ
Nexperia USA Inc.
Nexperia USA Inc.

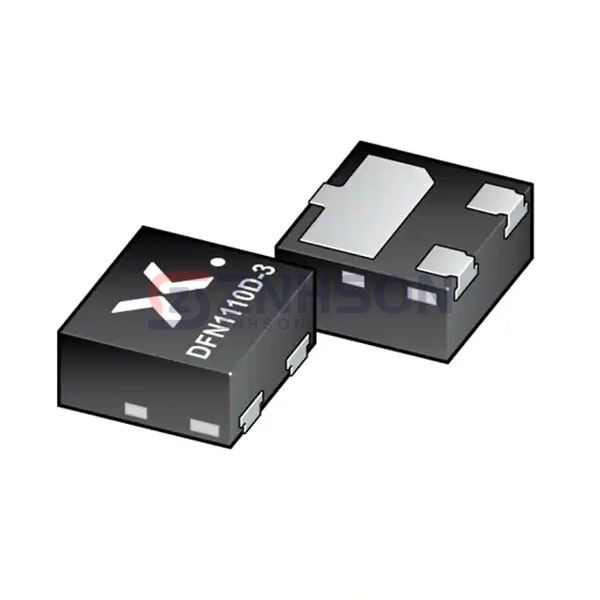

2N7002KQB/SOT8015/DFN1110D-3
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N7002KQBZ by Nexperia USA Inc. is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the 2N7002KQBZ is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 720mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 850mOhm @ 720mA, 10V
- Vgs(th) (Max) @ Id: 2.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.92 nC @ 10 V
- Vgs (Max): ±16V
- Input Capacitance (Ciss) (Max) @ Vds: 28 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 420mW (Ta), 4.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount, Wettable Flank
- Supplier Device Package: DFN1110D-3
- Package / Case: 3-XDFN Exposed Pad
