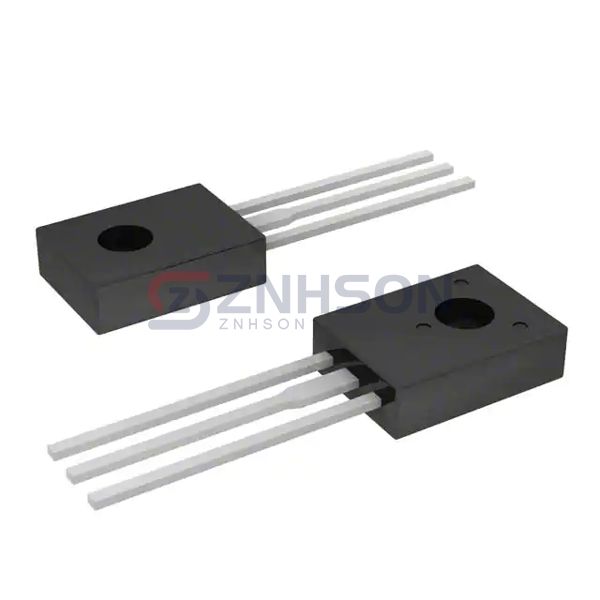

2SC3503ESTU
onsemi
onsemi
TRANS NPN 300V 0.1A TO126-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2SC3503ESTU Bipolar Junction Transistor (BJT) by onsemi is a versatile component in the discrete semiconductor products category. Designed for single-stage amplification and switching, this BJT transistor is widely used in medical devices, instrumentation, and power electronics. With its excellent thermal stability and low leakage current, the 2SC3503ESTU provides consistent performance in demanding applications. Choose onsemi for cutting-edge semiconductor solutions that drive innovation and efficiency in your projects.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 300 V
- Vce Saturation (Max) @ Ib, Ic: 600mV @ 2mA, 20mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 10V
- Power - Max: 7 W
- Frequency - Transition: 150MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-225AA, TO-126-3
- Supplier Device Package: TO-126-3
