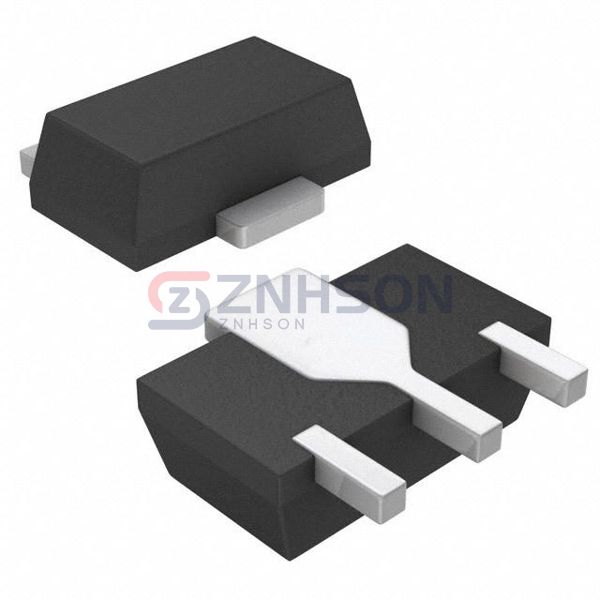

2SC3648S-TD-E
onsemi
onsemi
TRANS NPN 160V 0.7A PCP
$0.63
Available to order
Reference Price (USD)
1,000+
$0.19407
2,000+
$0.17776
5,000+
$0.16689
10,000+
$0.15603
25,000+
$0.15422
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the 2SC3648S-TD-E Bipolar Junction Transistor (BJT) from onsemi. This single BJT transistor offers exceptional performance in amplification and switching applications. Its high gain and low power dissipation make it suitable for use in audio equipment, sensors, and communication devices. The 2SC3648S-TD-E is built to withstand harsh environments, ensuring reliability in industrial and consumer applications. Trust onsemi to deliver high-quality discrete semiconductor products that meet your technical requirements.
Specifications
- Product Status: Active
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 700 mA
- Voltage - Collector Emitter Breakdown (Max): 160 V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 25mA, 250mA
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 100mA, 5V
- Power - Max: 500 mW
- Frequency - Transition: 120MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: PCP
