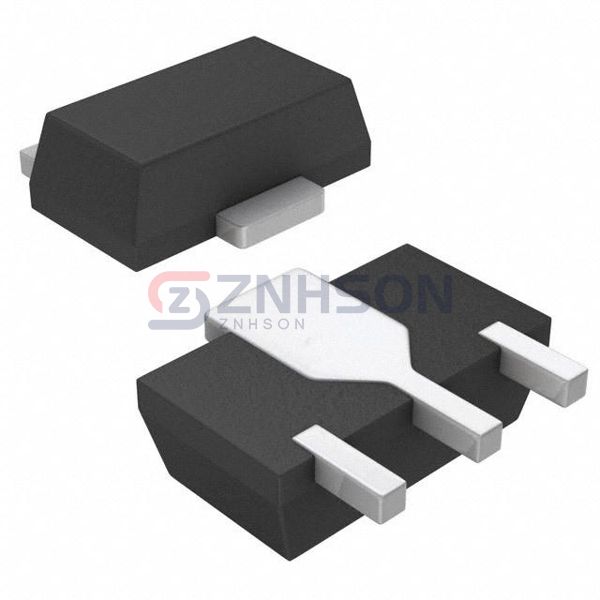

2SC3649T-TD-H
onsemi
onsemi
TRANS NPN 160V 1.5A PCP
$0.00
Available to order
Reference Price (USD)
1,000+
$0.29471
2,000+
$0.26848
5,000+
$0.25100
10,000+
$0.24809
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 2SC3649T-TD-H Bipolar Junction Transistor (BJT) by onsemi. This single BJT transistor is engineered for precision and reliability, featuring low saturation voltage and high current gain. Perfect for switching and amplification tasks, the 2SC3649T-TD-H is widely used in consumer electronics, industrial automation, and telecommunications. Its compact design and superior thermal performance make it a preferred choice for engineers worldwide. Trust onsemi for high-quality discrete semiconductor products that meet the demands of modern electronics.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 1.5 A
- Voltage - Collector Emitter Breakdown (Max): 160 V
- Vce Saturation (Max) @ Ib, Ic: 450mV @ 50mA, 500mA
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 100mA, 5V
- Power - Max: 500 mW
- Frequency - Transition: 120MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: PCP
