2SC5536A-TL-H
onsemi
onsemi
RF TRANS NPN 12V 1.7GHZ 3SSFP
$0.52
Available to order
Reference Price (USD)
8,000+
$0.15337
16,000+
$0.14400
24,000+
$0.13306
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your RF designs with the 2SC5536A-TL-H, a high-efficiency Bipolar Junction Transistor (BJT) from onsemi. As part of the Discrete Semiconductor Products family, this transistor is tailored for RF applications, providing superior amplification and signal integrity. Its high-frequency performance and low distortion make it suitable for use in TV tuners, wireless microphones, and RF identification systems. The 2SC5536A-TL-H features high current gain, excellent thermal characteristics, and long-term reliability. Whether for commercial or industrial use, this transistor delivers consistent results. Trust onsemi for high-quality RF BJTs that meet the toughest demands.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Voltage - Collector Emitter Breakdown (Max): 12V
- Frequency - Transition: 1.7GHz
- Noise Figure (dB Typ @ f): 1.8dB @ 150MHz
- Gain: 16dB
- Power - Max: 100mW
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 3mA, 2V
- Current - Collector (Ic) (Max): 50mA
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-81
- Supplier Device Package: 3-SSFP
Related Products
MACOM Technology Solutions
MRF454
NXP USA Inc.
BFU550XVL
Infineon Technologies
BFP460H6327XTSA1
NTE Electronics, Inc
NTE2402
Toshiba Semiconductor and Storage

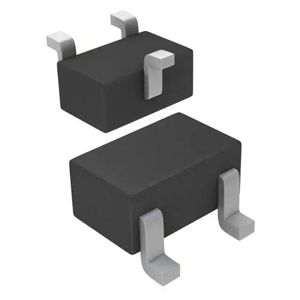

MT3S16U(TE85L,F)
