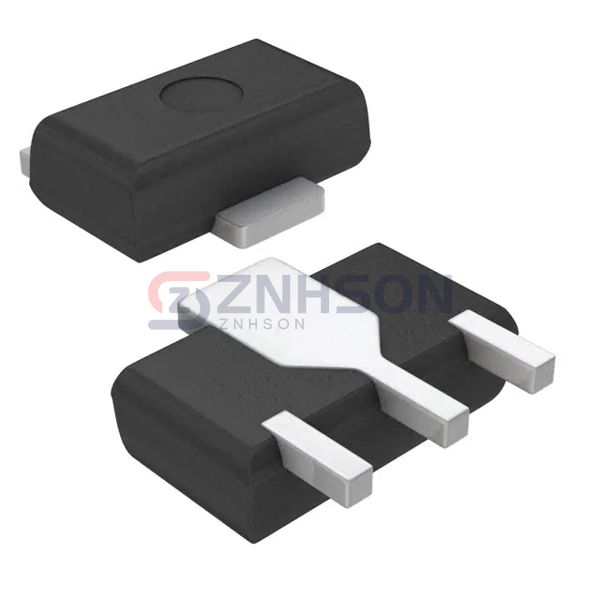

2SD22100RL
Panasonic Electronic Components
Panasonic Electronic Components
TRANS NPN 20V 0.5A MINIP3-F1
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the 2SD22100RL Bipolar Junction Transistor (BJT) from Panasonic Electronic Components. This single BJT transistor offers exceptional performance in amplification and switching applications. Its high gain and low power dissipation make it suitable for use in audio equipment, sensors, and communication devices. The 2SD22100RL is built to withstand harsh environments, ensuring reliability in industrial and consumer applications. Trust Panasonic Electronic Components to deliver high-quality discrete semiconductor products that meet your technical requirements.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 500 mA
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 20mA, 500mA
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
- Power - Max: 1 W
- Frequency - Transition: 200MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: MiniP3-F1
