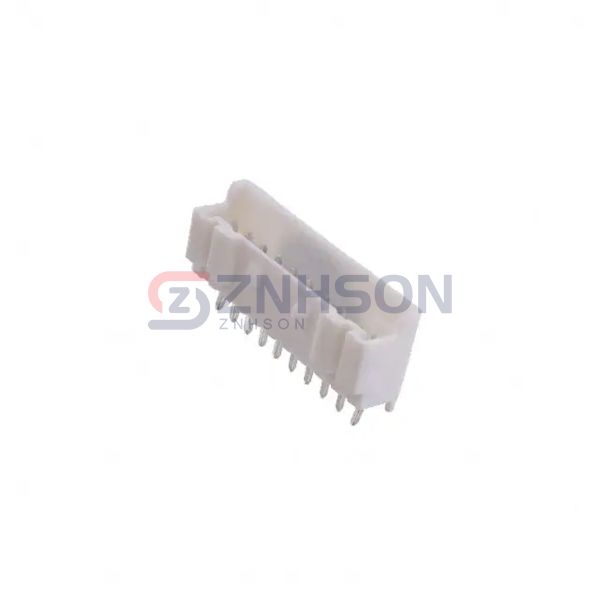

2SH-H-10-TS
Adam Tech
Adam Tech
CONN HDR T-H VERT 10POS 2.00MM
$0.32
Available to order
Reference Price (USD)
1+
$0.32000
500+
$0.3168
1000+
$0.3136
1500+
$0.3104
2000+
$0.3072
2500+
$0.304
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2SH-H-10-TS by Adam Tech is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Adam Tech delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.303" (7.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): 3A (AC/DC)
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
FTSH-113-01-FM-MT
TE Connectivity AMP Connectors
9-146253-0-17
Samtec Inc.
TSW-133-26-S-D
Samtec Inc.
TMM-112-01-G-D-SM
Samtec Inc.
TSM-107-04-L-DV-TR
Preci-Dip
350-80-133-01-666101
Samtec Inc.
TSM-117-02-L-DH
Samtec Inc.

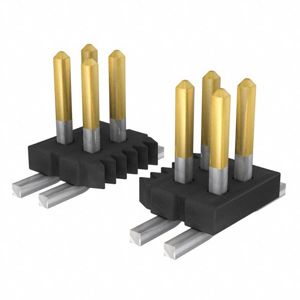

FTS-106-01-SM-DV-P-TR
Samtec Inc.

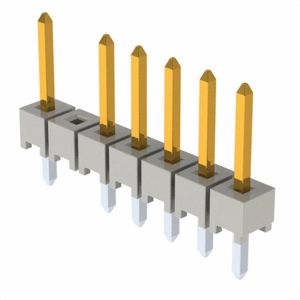

HTSW-107-07-F-S-006
