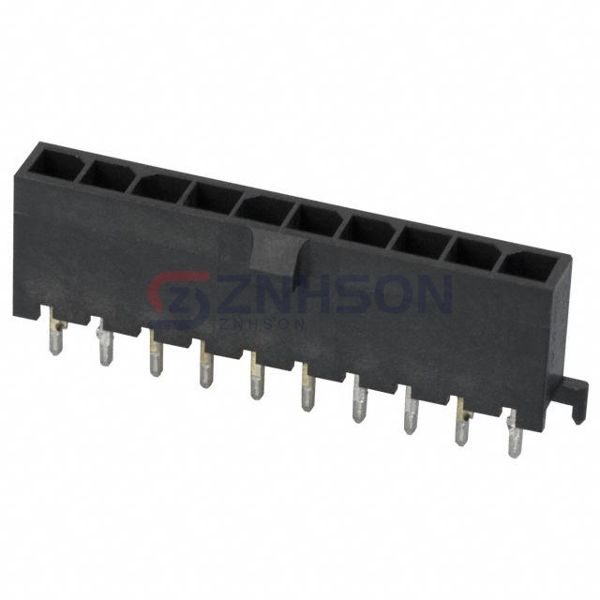

3-1445093-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 3MM
$2.86
Available to order
Reference Price (USD)
1+
$2.28000
10+
$2.07100
112+
$1.77527
560+
$1.47939
1,008+
$1.26806
5,040+
$1.12434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 3-1445093-0 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 3-1445093-0 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.364" (9.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
Related Products
Adam Tech
DME-09-S2-P-SQ
Amphenol ICC (FCI)
69190-202HLF
Amphenol ICC (FCI)
10142708-04100LF
Samtec Inc.
FTS-106-03-F-DV-A-P-TR
Samtec Inc.
TMM-122-01-T-S-SM
Preci-Dip
350-80-164-01-899101
Samtec Inc.
TSM-105-01-T-DH-A-005-P-TR
Sullins Connector Solutions

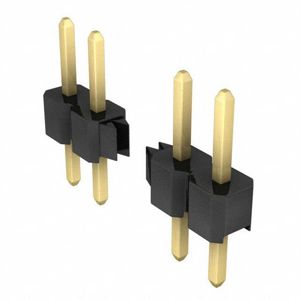

NRPN061PAEN-RC
Samtec Inc.

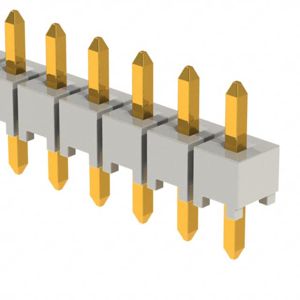

HTSW-108-06-G-S
