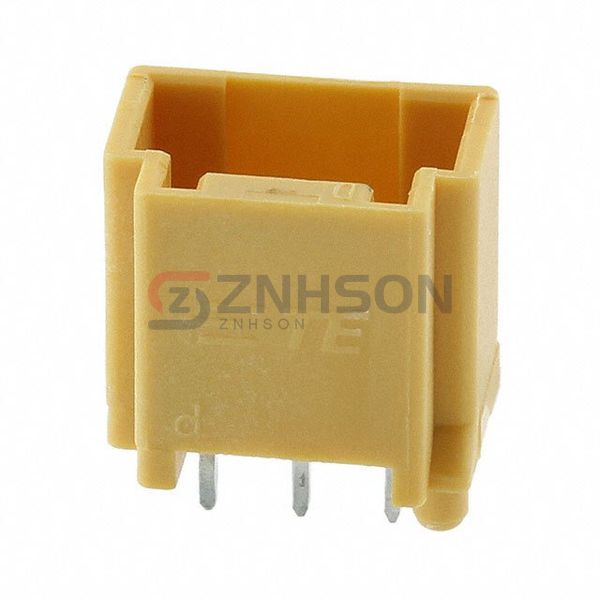

3-1971032-3

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 3
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Latch Holder
• Contact Length - Mating: -
• Contact Length - Post: 0.102" (2.60mm)
• Overall Contact Length: -
• Insulation Height: 0.256" (6.50mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: -
• Contact Finish - Post: Tin
• Contact Material: Brass
• Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
• Features: Board Lock
• Operating Temperature: -30°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Yellow
• Current Rating (Amps): Varies by Wire Gauge
• Voltage Rating: 50V
