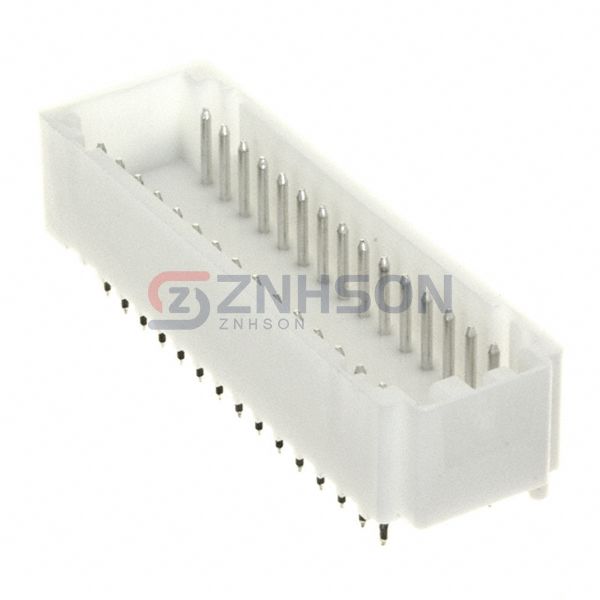

3-292141-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 30POS 2MM
$1.71
Available to order
Reference Price (USD)
1+
$1.43000
10+
$1.26800
120+
$1.10683
600+
$0.92232
1,080+
$0.83008
5,040+
$0.73786
10,080+
$0.70558
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 3-292141-0 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 3-292141-0 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.256" (6.50mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.185" (4.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.386" (9.80mm)
- Insulation Height: 0.295" (7.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC
