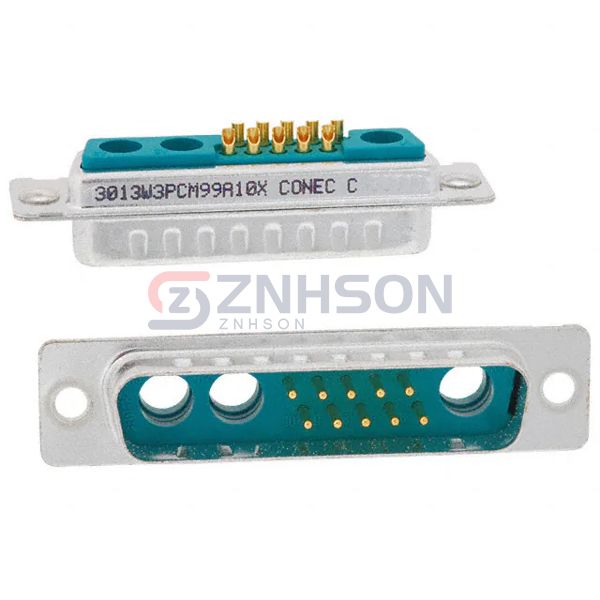

3013W3PCM99A10X
Conec
Conec
CONN D-SUB PLUG 13POS SLDR CUP
$10.24
Available to order
Reference Price (USD)
1+
$8.18000
10+
$7.84300
25+
$7.16120
50+
$6.82000
100+
$6.47900
250+
$5.79700
500+
$5.45600
1,000+
$4.77400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Conec presents the 3013W3PCM99A10X D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 3013W3PCM99A10X is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Plug, Male Pins
- Number of Positions: 13 (10 + 3 Coax or Power)
- Number of Rows: 2
- Mounting Type: Free Hanging (In-Line)
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Signal and Coax or Power (Not Included)
- Flange Feature: Housing/Shell (Unthreaded)
- Termination: Solder Cup
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Grounding Indents
Related Products
EDAC Inc.
630-24W7240-4TD
Positronic
RD9S10WE3C
TE Connectivity AMP Connectors
5747461-2
EDAC Inc.
628-5W1-224-7T6
EDAC Inc.
628-13W3624-4T3
EDAC Inc.
622-037-368-046
EDAC Inc.
622-015-368-013
EDAC Inc.
621-M50-360-BT6
EDAC Inc.

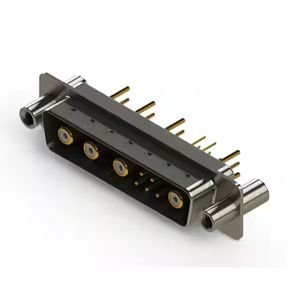

627-9W4-224-5TC
