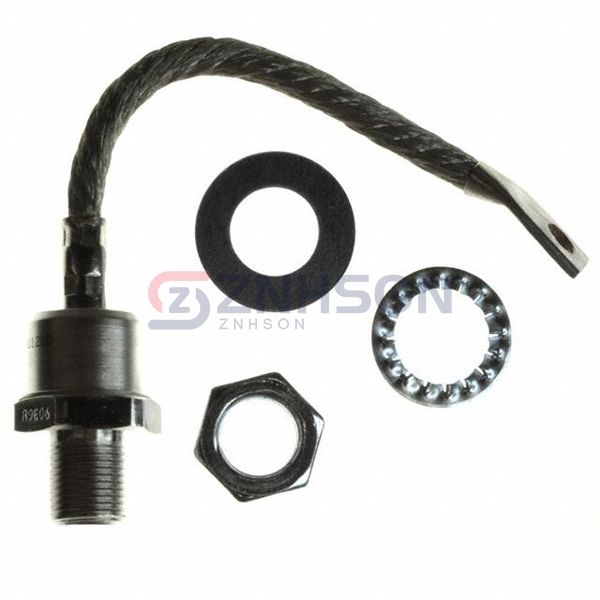

301U120
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE GEN PURP 1.2KV 330A DO205
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 301U120 by Vishay General Semiconductor - Diodes Division is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the 301U120 ensures long-term reliability even in harsh operating conditions. Trust Vishay General Semiconductor - Diodes Division for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200 V
- Current - Average Rectified (Io): 330A
- Voltage - Forward (Vf) (Max) @ If: 1.22 V @ 942 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 15 mA @ 1200 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-205AB, DO-9, Stud
- Supplier Device Package: DO-205AB (DO-9)
- Operating Temperature - Junction: -40°C ~ 180°C
