3020-10-0100-00
CNC Tech
CNC Tech

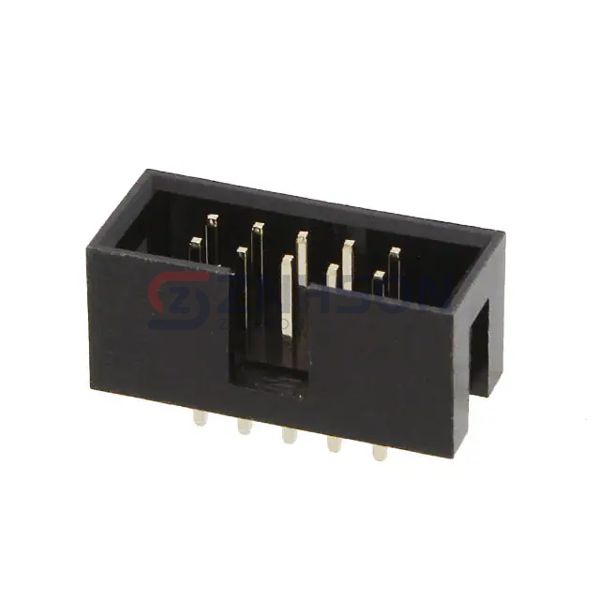

CONN HEADER VERT 10POS 2.54MM
$0.64
Available to order
Reference Price (USD)
1+
$0.58000
10+
$0.54000
100+
$0.41400
500+
$0.36000
1,560+
$0.28800
6,240+
$0.26100
10,920+
$0.24300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 3020-10-0100-00 rectangular connector header by CNC Tech. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 3020-10-0100-00 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust CNC Tech for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC/DC
