3020-10-0200-00
CNC Tech
CNC Tech

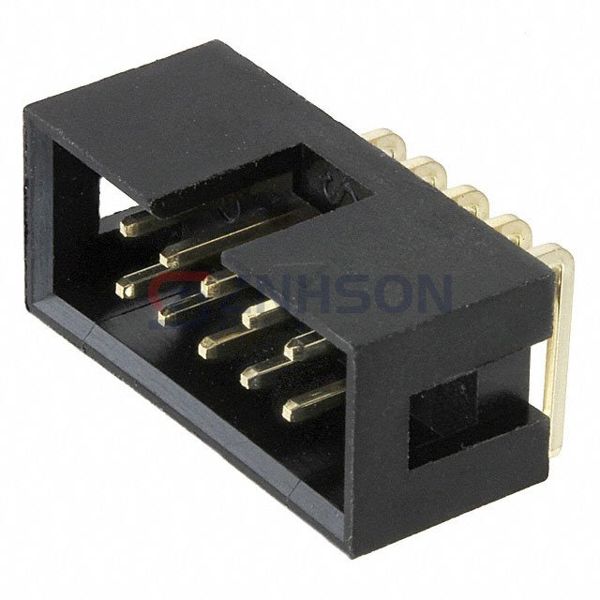

CONN HEADER R/A 10POS 2.54MM
$0.81
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.69000
100+
$0.52900
500+
$0.46000
1,560+
$0.36800
6,240+
$0.33350
10,920+
$0.31050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3020-10-0200-00 by CNC Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 3020-10-0200-00 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. CNC Tech ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC/DC
