3020-26-0100-00
CNC Tech
CNC Tech
CONN HEADER VERT 26POS 2.54MM
$1.13
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84200
100+
$0.72600
720+
$0.59400
1,440+
$0.52800
5,040+
$0.46200
10,080+
$0.43890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3020-26-0100-00 from CNC Tech is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 3020-26-0100-00 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose CNC Tech for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.354" (9.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T; Polyamide (PA9T), Nylon 9T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 3A
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
HTSW-102-05-G-S
TE Connectivity AMP Connectors
9-146257-0-35
Amphenol ICC (FCI)
77315-824-28LF

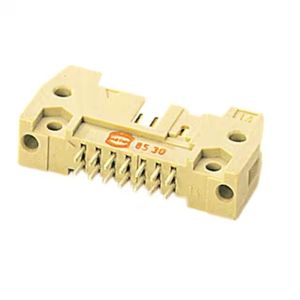

HARTING
09195066914

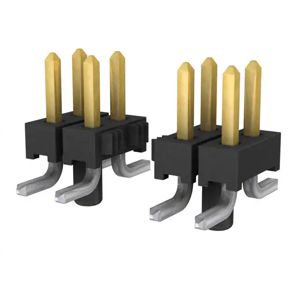

Samtec Inc.
TMM-107-01-LM-D-SM-A-P-TR

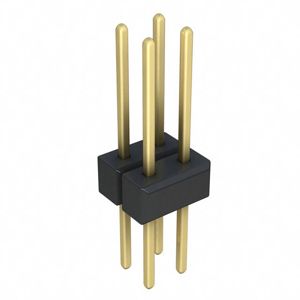

Sullins Connector Solutions
PBC02DFBN

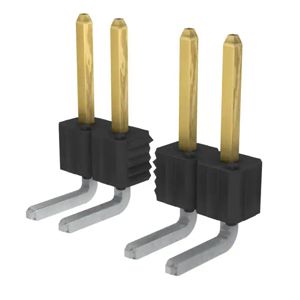

Amphenol ICC (FCI)
68016-106HLF

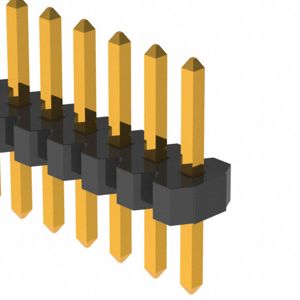

Sullins Connector Solutions
GRPB361VWVN-RC

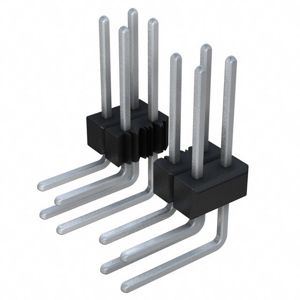

Sullins Connector Solutions
PEC12DGBN

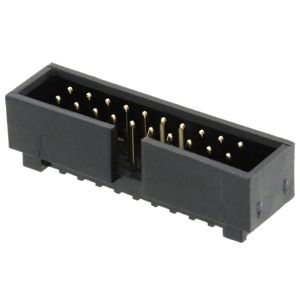

Molex
