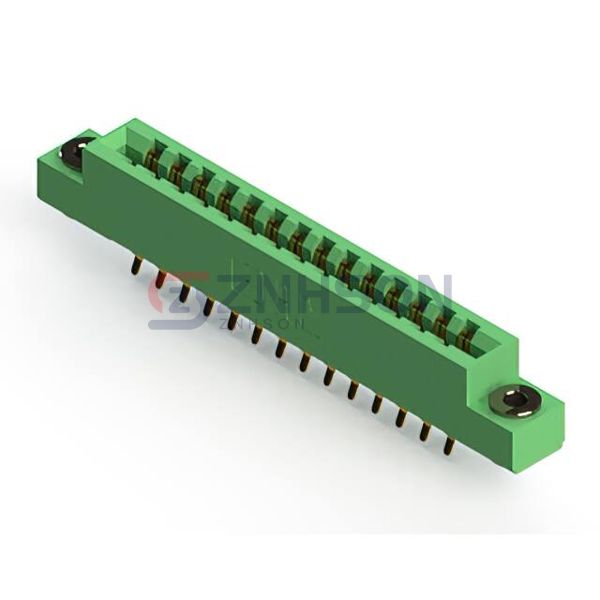

305-028-556-203
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$13.31
Available to order
Reference Price (USD)
1+
$13.30880
500+
$13.175712
1000+
$13.042624
1500+
$12.909536
2000+
$12.776448
2500+
$12.64336
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 305-028-556-203 Edgeboard Connectors by EDAC Inc. offer a superior connection solution for today's advanced electronic systems. With their high-temperature resistance and excellent mating cycle life, these Card Edge Connectors are perfectly suited for use in power supplies, LED lighting, and HVAC controls. Choose EDAC Inc. for connectors that deliver both performance and peace of mind.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 14
- Number of Positions: 28
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
346-006-541-108
EDAC Inc.
895-043-524-102
EDAC Inc.

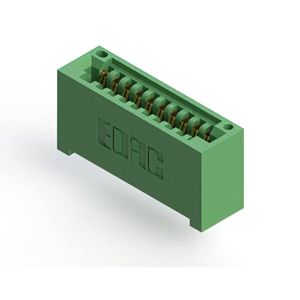

845-010-520-101
EDAC Inc.

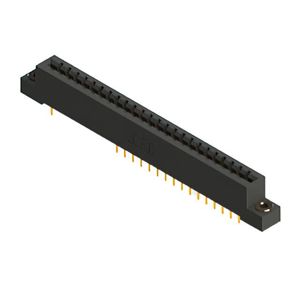

887-048-523-203
EDAC Inc.

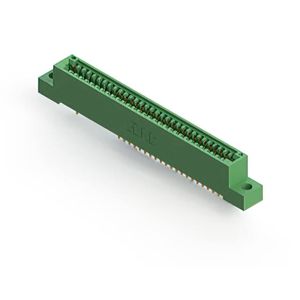

345-031-541-104
EDAC Inc.

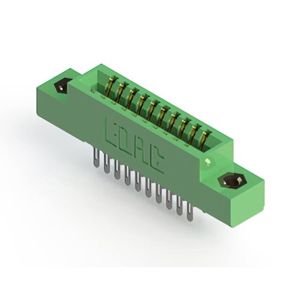

341-020-500-208
EDAC Inc.

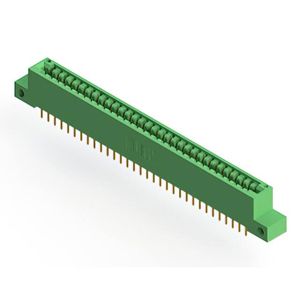

846-064-521-212
EDAC Inc.

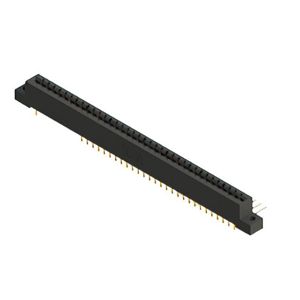

887-072-558-204
EDAC Inc.

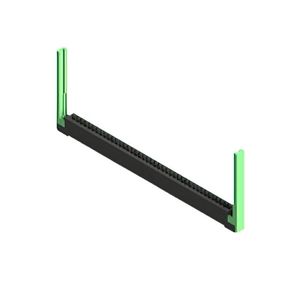

387-040-541-168
