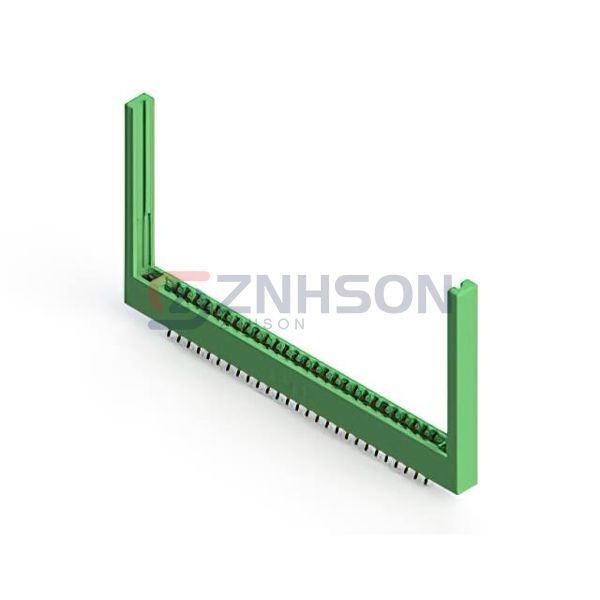

305-054-556-568
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$17.19
Available to order
Reference Price (USD)
1+
$17.18880
500+
$17.016912
1000+
$16.845024
1500+
$16.673136
2000+
$16.501248
2500+
$16.32936
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 305-054-556-568 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 27
- Number of Positions: 54
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender, Card Guides
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
