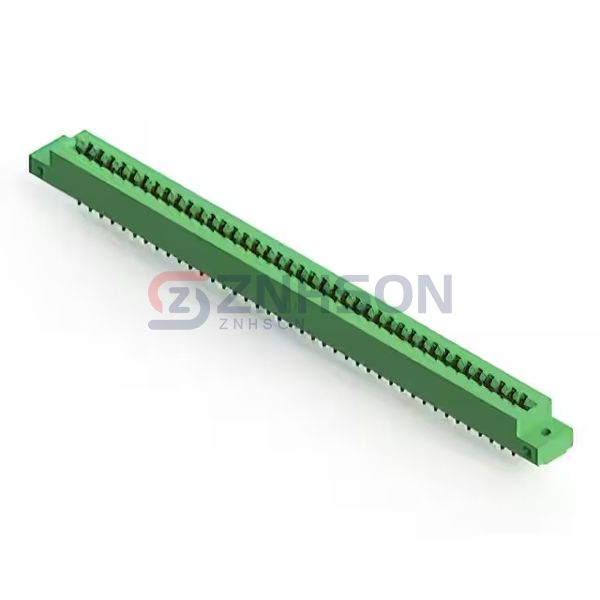

305-080-556-512
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$16.93
Available to order
Reference Price (USD)
1+
$16.92600
500+
$16.75674
1000+
$16.58748
1500+
$16.41822
2000+
$16.24896
2500+
$16.0797
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 305-080-556-512 by EDAC Inc. sets the standard for Card Edge Connectors - Edgeboard Connectors with its innovative design and exceptional reliability. These connectors are optimized for high-density applications, offering a perfect balance between size and performance. Commonly used in server backplanes, data storage systems, and military communications, the 305-080-556-512 delivers unmatched connectivity solutions for critical operations.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 40
- Number of Positions: 80
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
345-104-555-203
EDAC Inc.
837-007-500-102
EDAC Inc.
895-036-558-104
EDAC Inc.
392-030-555-202
EDAC Inc.
357-032-453-158
EDAC Inc.
307-036-460-208
EDAC Inc.

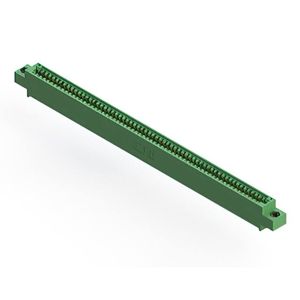

845-062-521-607
EDAC Inc.

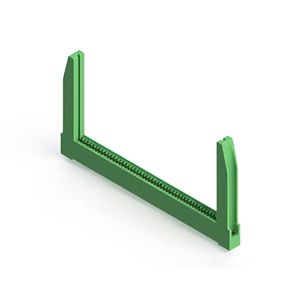

345-049-525-178
EDAC Inc.

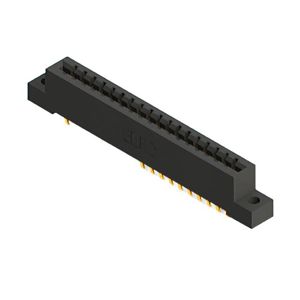

387-036-560-204
