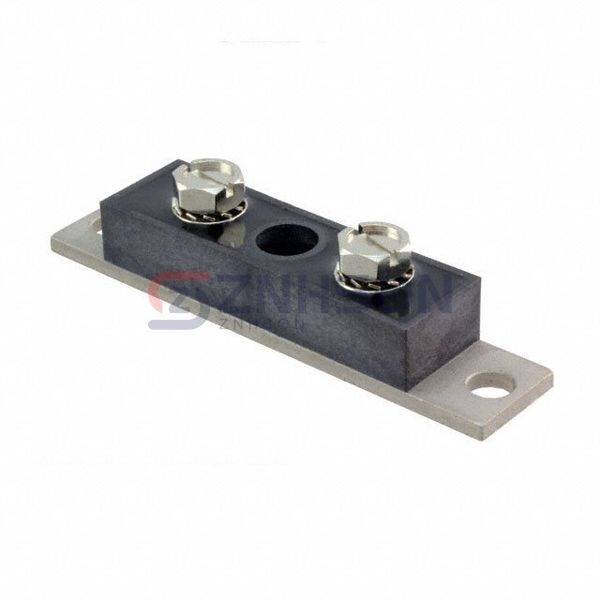

309CNQ135
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 135V 150A PRM4
$60.84
Available to order
Reference Price (USD)
198+
$64.73808
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 309CNQ135 from SMC Diode Solutions is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose SMC Diode Solutions's 309CNQ135 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 135 V
- Current - Average Rectified (Io) (per Diode): 150A
- Voltage - Forward (Vf) (Max) @ If: 1.03 V @ 150 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 3 mA @ 135 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Chassis Mount
- Package / Case: PRM4
- Supplier Device Package: PRM4 (Non-Isolated)
