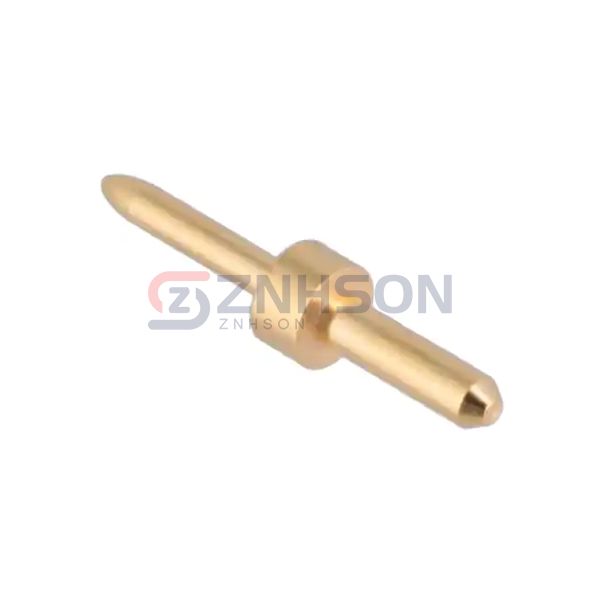

3136-3-00-34-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
$1.27
Available to order
Reference Price (USD)
1+
$1.16000
10+
$1.01700
25+
$0.95760
50+
$0.91780
100+
$0.87780
250+
$0.79800
500+
$0.71820
1,000+
$0.63840
2,500+
$0.57855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3136-3-00-34-00-00-08-0 terminal connector by Mill-Max Manufacturing Corp. is engineered for precision and durability in PC pin and single post applications. Its robust design ensures a secure fit and excellent electrical conductivity, making it suitable for high-performance environments. Whether you're working on consumer electronics, medical devices, or industrial machinery, the 3136-3-00-34-00-00-08-0 provides a reliable connection every time. Mill-Max Manufacturing Corp. is known for its innovative solutions, and the 3136-3-00-34-00-00-08-0 is no exception. Invest in quality with Mill-Max Manufacturing Corp. today.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.030" (0.76mm) Dia
- Length - Above Flange: 0.145" (3.68mm)
- Length - Below Flange: 0.180" (4.57mm)
- Length - Overall: 0.365" (9.27mm)
- Flange Diameter: 0.078" (1.98mm)
- Mounting Hole Diameter: 0.043" (1.09mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.125" (3.18mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 50.0µin (1.27µm)
