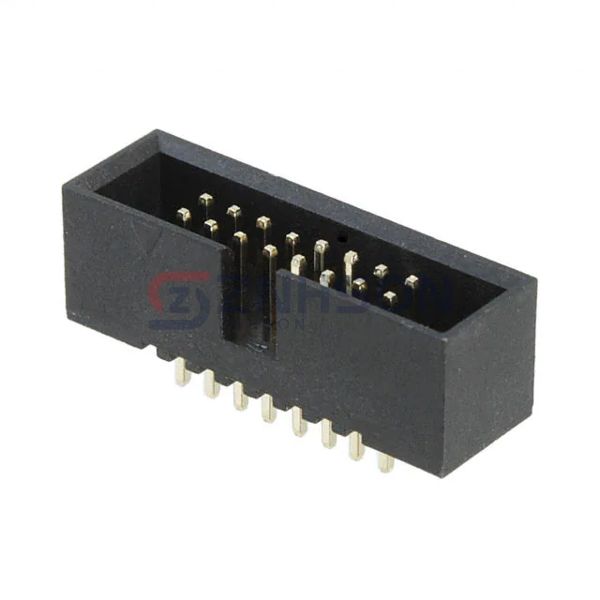

3220-16-0100-00

CNC Tech

Manufacturer

CNC Tech

Description:

CONN HEADER VERT 16POS 1.27MM

Datasheet:

3220-16-0100-00 Datasheet

$0.88

Available to order

Reference Price (USD)

$0.84000

10+

$0.74000

100+

$0.63800

500+

$0.52200

2,520+

$0.42050

5,040+

$0.40600

10,080+

$0.38570

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 3220-16-0100-00 by CNC Tech is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 3220-16-0100-00 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. CNC Tech ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.050" (1.27mm)
Number of Positions: 16
Number of Rows: 2
Row Spacing - Mating: 0.050" (1.27mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: -
Contact Length - Post: 0.083" (2.11mm)
Overall Contact Length: -
Insulation Height: 0.213" (5.40mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: -
Contact Material: Brass
Insulation Material: Polyamide (PA6T), Nylon 6T
Features: Keying Slot
Operating Temperature: -40°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: -
Current Rating (Amps): 1A
Voltage Rating: -
