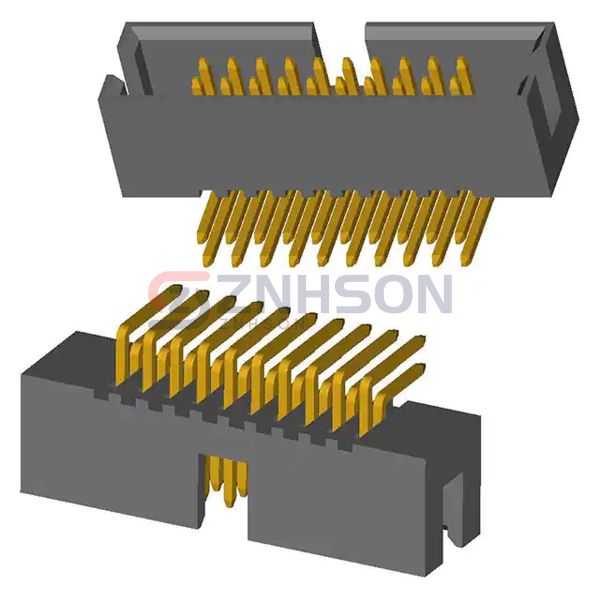

3221-50-0200-00
CNC Tech
CNC Tech
CONN HEADER R/A 50POS 1.27MM
$2.75
Available to order
Reference Price (USD)
1+
$2.75000
500+
$2.7225
1000+
$2.695
1500+
$2.6675
2000+
$2.64
2500+
$2.6125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 3221-50-0200-00 rectangular connector header from CNC Tech for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. CNC Tech is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.083" (2.11mm)
- Overall Contact Length: -
- Insulation Height: 0.201" (5.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: -
