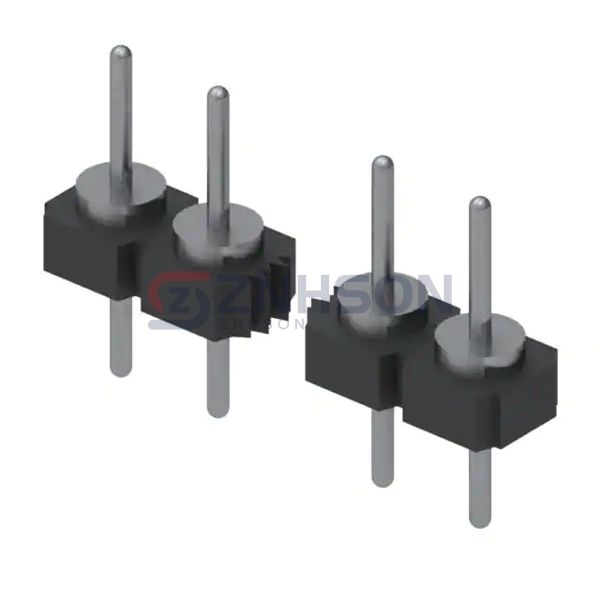

335-10-105-00-160000

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

CONN HEADER VERT 5POS 2.54MM

Datasheet:

335-10-105-00-160000 Datasheet

$12.53

Available to order

Reference Price (USD)

$12.52537

500+

$12.4001163

1000+

$12.2748626

1500+

$12.1496089

2000+

$12.0243552

2500+

$11.8991015

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 335-10-105-00-160000 rectangular connector header from Mill-Max Manufacturing Corp.. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 335-10-105-00-160000 meets the highest industry standards. Mill-Max Manufacturing Corp. provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 5
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.125" (3.18mm)
Contact Length - Post: 0.104" (2.64mm)
Overall Contact Length: 0.299" (7.60mm)
Insulation Height: 0.050" (1.27mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Brass Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: 100V, 150VDC
