3372-6305
3M
3M
CONN HEADER VERT 60POS 2.54MM
$17.97
Available to order
Reference Price (USD)
1+
$14.87000
10+
$13.52000
100+
$11.49200
500+
$9.80200
1,000+
$8.99080
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3372-6305 by 3M is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. 3M delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Wire Wrap
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.610" (15.49mm)
- Overall Contact Length: 1.150" (29.21mm)
- Insulation Height: 0.680" (17.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
4-794626-4
Samtec Inc.

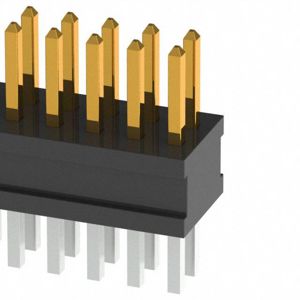

FTSH-132-04-F-D
Molex

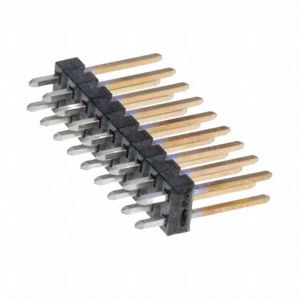

0010977186
Sullins Connector Solutions

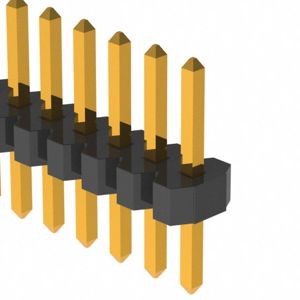

GRPB471VWVN-RC
Samtec Inc.
TSW-110-14-L-S
Sullins Connector Solutions
GRPB341VWTD-RC
Molex

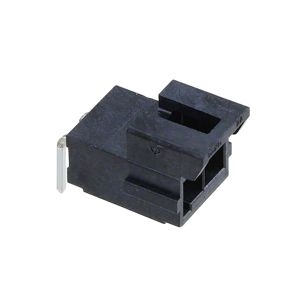

1723101302
Omron Electronics Inc-EMC Div

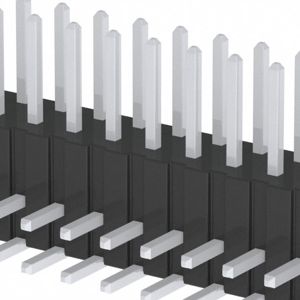

XG8W-5044
TE Connectivity AMP Connectors

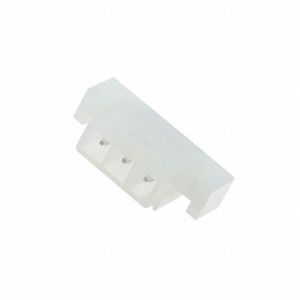

2029154-3
