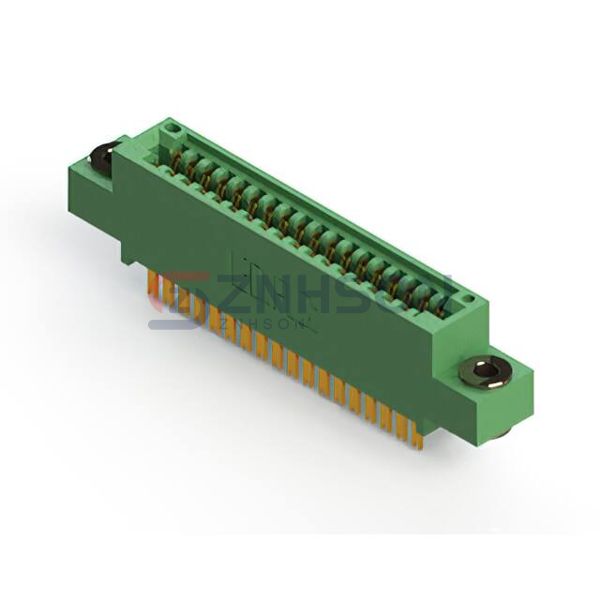

345-036-500-503
EDAC Inc.
EDAC Inc.
345 SERIES (.100" (2.54MM) CONTA
$16.89
Available to order
Reference Price (USD)
1+
$16.89360
500+
$16.724664
1000+
$16.555728
1500+
$16.386792
2000+
$16.217856
2500+
$16.04892
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 345-036-500-503 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 18
- Number of Positions: 36
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Solder Eyelet(s)
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
