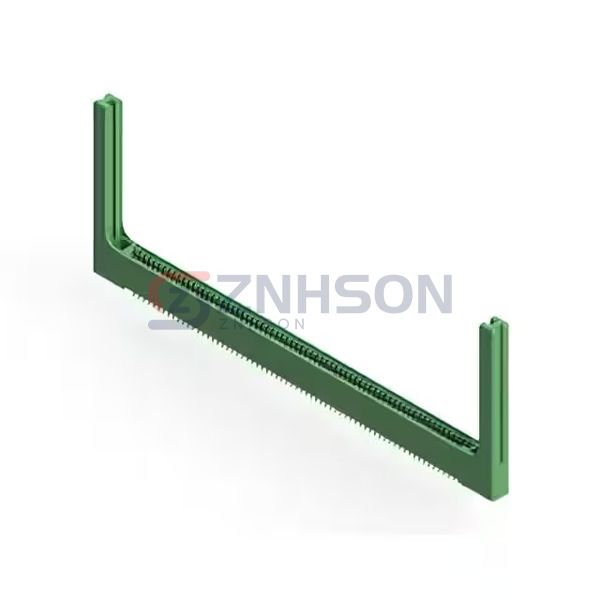

345-136-556-258
EDAC Inc.

EDAC Inc.
CONN EDGE DUAL FML 136POS 0.100
$21.63
Available to order
Reference Price (USD)
1+
$21.62960
500+
$21.413304
1000+
$21.197008
1500+
$20.980712
2000+
$20.764416
2500+
$20.54812
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 345-136-556-258 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 68
- Number of Positions: 136
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: Card Extender, Card Guides
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
