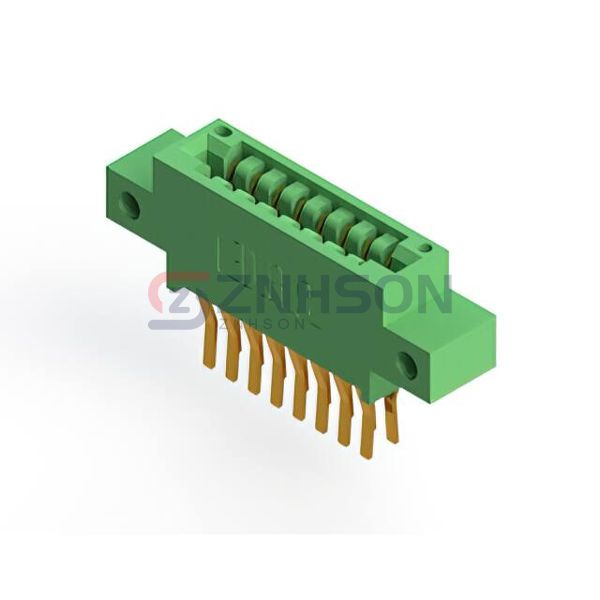

346-016-560-812
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
$11.10
Available to order
Reference Price (USD)
1+
$11.10360
500+
$10.992564
1000+
$10.881528
1500+
$10.770492
2000+
$10.659456
2500+
$10.54842
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 346-016-560-812 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 8
- Number of Positions: 16
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Side Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
392-018-520-204
EDAC Inc.
357-056-440-204
EDAC Inc.
337-048-521-807
EDAC Inc.
395-017-523-602
EDAC Inc.
395-058-525-201
EDAC Inc.
342-012-544-101
EDAC Inc.
346-035-540-102
EDAC Inc.
357-012-458-168
EDAC Inc.

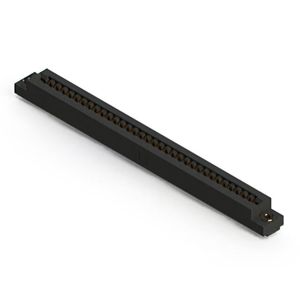

357-033-554-103
