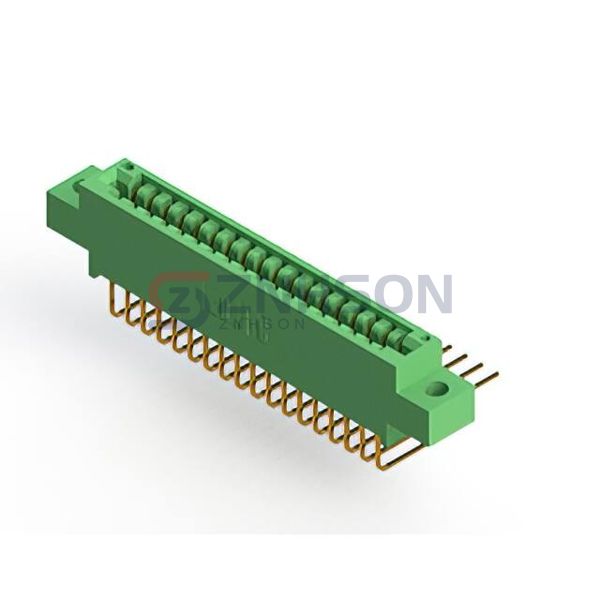

346-036-558-804
EDAC Inc.
EDAC Inc.
346 SERIES (.125" (3.18MM) CONTA
$10.55
Available to order
Reference Price (USD)
1+
$10.54800
500+
$10.44252
1000+
$10.33704
1500+
$10.23156
2000+
$10.12608
2500+
$10.0206
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 346-036-558-804 Card Edge Connectors - Edgeboard Connectors by EDAC Inc. are high-performance interconnect solutions designed for reliable signal transmission in demanding applications. These connectors feature a robust design with precision contacts, ensuring secure connections and long-term durability. Ideal for PCB-to-PCB connections, they support high-speed data transfer and are widely used in telecommunications, industrial automation, and consumer electronics. With their compact form factor and excellent electrical properties, the 346-036-558-804 series is a top choice for engineers seeking dependable edgeboard connectivity.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 18
- Number of Positions: 36
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Green
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.

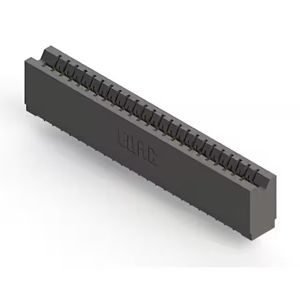

746-024-525-106
EDAC Inc.

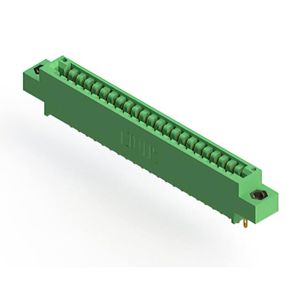

846-023-500-607
EDAC Inc.

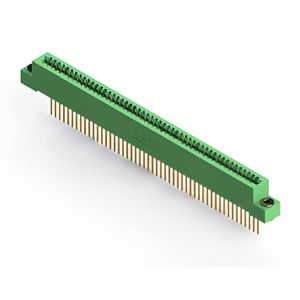

342-050-542-103
EDAC Inc.

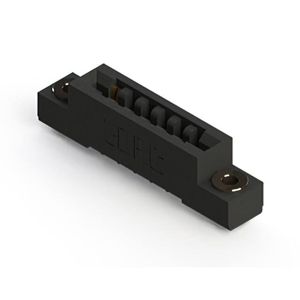

357-012-556-203
EDAC Inc.
342-112-542-207
EDAC Inc.

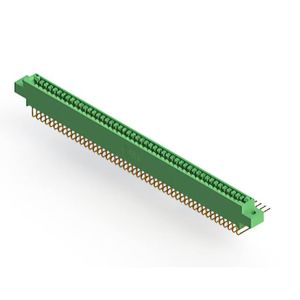

846-096-558-802
EDAC Inc.

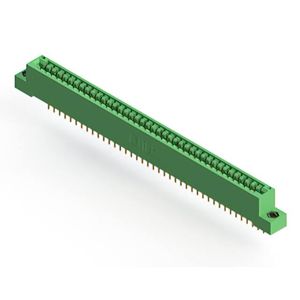

346-040-526-107
EDAC Inc.

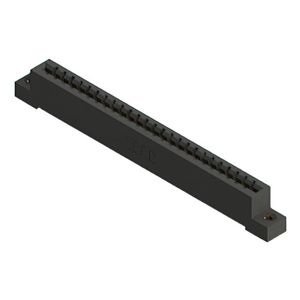

387-025-521-108
EDAC Inc.

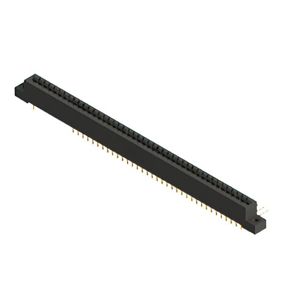

887-086-558-207
