349-10-120-00-560000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

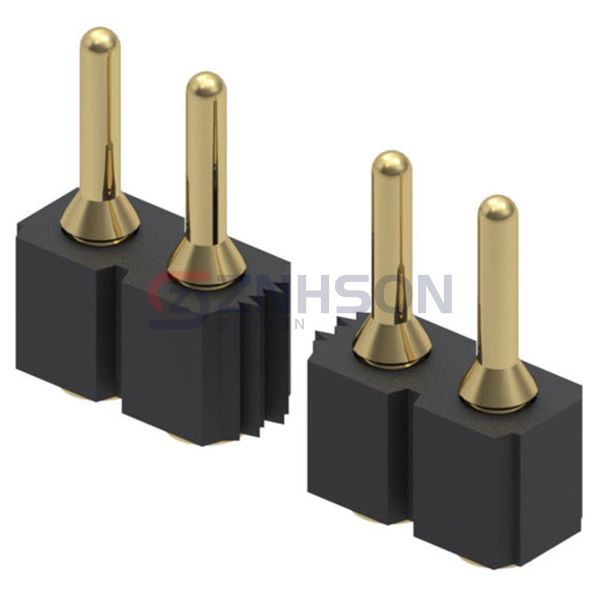

CONN HEADER SMD 20POS 2.54MM
$5.46
Available to order
Reference Price (USD)
1+
$4.42000
10+
$4.24500
25+
$3.89160
50+
$3.71460
100+
$3.53770
250+
$3.09552
500+
$3.00708
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 349-10-120-00-560000 rectangular connector header from Mill-Max Manufacturing Corp. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Mill-Max Manufacturing Corp. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.136" (3.45mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: -
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
