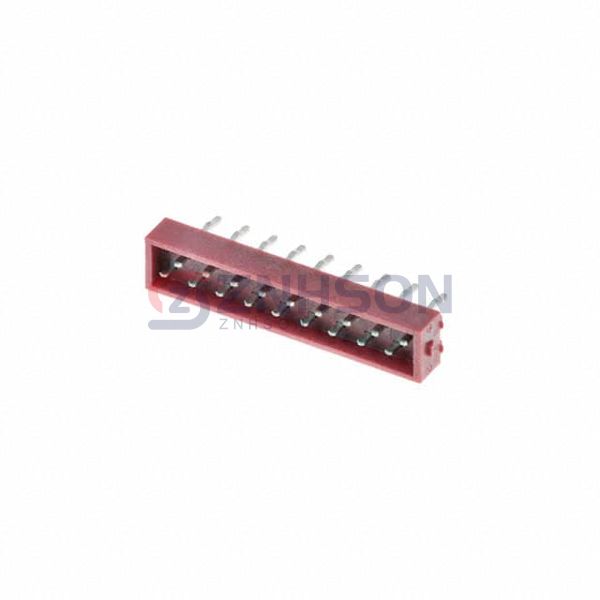

3522-18-0100-99
CNC Tech
CNC Tech
CONN HEADER VERT 18POS 2.54MM
$1.81
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.25000
100+
$1.07100
500+
$0.89250
1,100+
$0.76500
5,500+
$0.67830
11,000+
$0.66300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 3522-18-0100-99 rectangular connector header from CNC Tech. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 3522-18-0100-99 meets the highest industry standards. CNC Tech provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
Related Products
Preci-Dip
894-70-093-10-002101
TE Connectivity AMP Connectors
1-2842111-0
Harwin Inc.
M80-5303442
Samtec Inc.
FTSH-116-04-L-D-RA
Samtec Inc.
HTSW-108-14-S-S-LL
Samtec Inc.

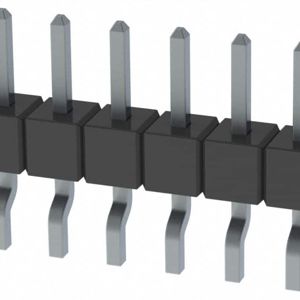

MMT-113-01-T-SH
