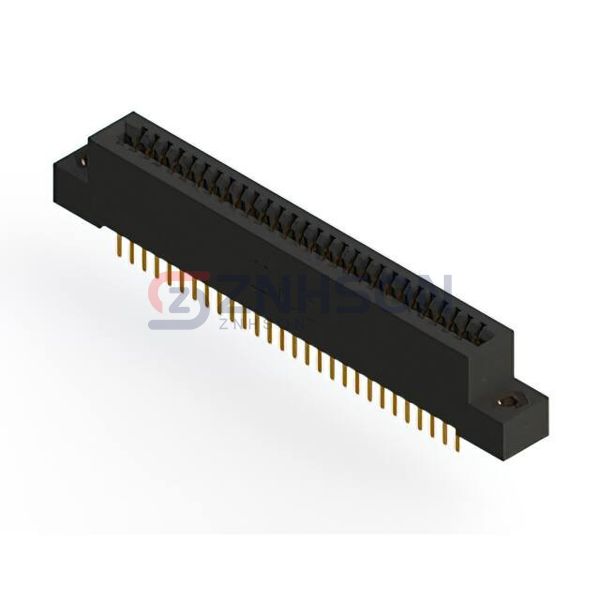

392-056-520-207
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.100
$13.73
Available to order
Reference Price (USD)
1+
$13.73360
500+
$13.596264
1000+
$13.458928
1500+
$13.321592
2000+
$13.184256
2500+
$13.04692
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 392-056-520-207 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 28
- Number of Positions: 56
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.100" (2.54mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
316-022-500-103
EDAC Inc.
857-044-453-102
EDAC Inc.
837-030-524-103
EDAC Inc.
345-048-542-104
EDAC Inc.
845-024-558-812
EDAC Inc.
845-009-559-603
EDAC Inc.

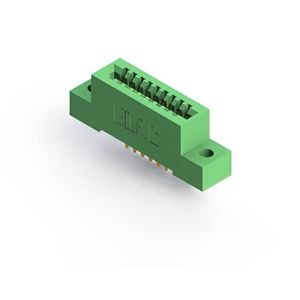

842-009-541-102
EDAC Inc.

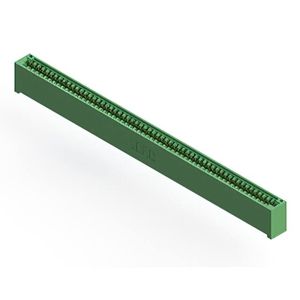

845-058-524-101
EDAC Inc.

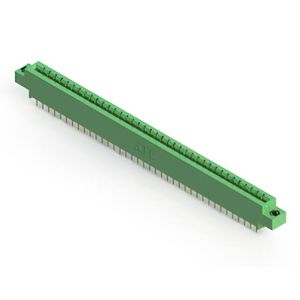

333-076-524-808
