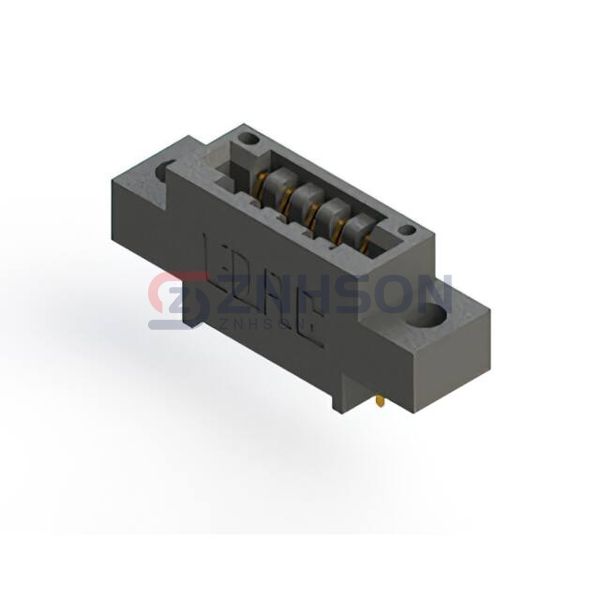

396-005-520-604
EDAC Inc.
EDAC Inc.
CONN EDGE SGL FMALE 5POS 0.125
$7.49
Available to order
Reference Price (USD)
1+
$7.49440
500+
$7.419456
1000+
$7.344512
1500+
$7.269568
2000+
$7.194624
2500+
$7.11968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-005-520-604 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 5
- Number of Positions: 5
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
