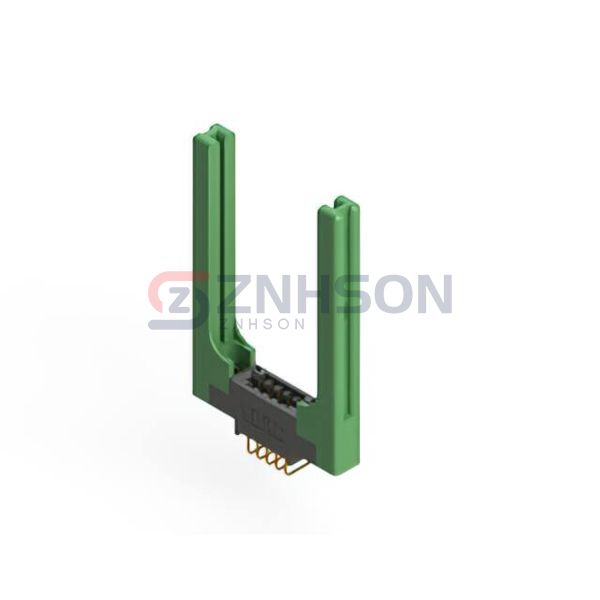

396-010-559-858
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$11.84
Available to order
Reference Price (USD)
1+
$11.83600
500+
$11.71764
1000+
$11.59928
1500+
$11.48092
2000+
$11.36256
2500+
$11.2442
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For seamless PCB integration, choose the 396-010-559-858 Card Edge Connectors - Edgeboard Connectors from EDAC Inc.. These connectors boast a user-friendly design with polarized housings to prevent mis-mating, making them ideal for high-volume production environments. Their use in consumer electronics, automotive infotainment, and IoT devices highlights their adaptability and superior quality.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 5
- Number of Positions: 10
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Guides
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
396-060-556-207
EDAC Inc.
396-009-540-104
EDAC Inc.
395-005-542-404
EDAC Inc.
395-022-541-208
EDAC Inc.
395-040-559-102
EDAC Inc.
845-032-559-803
EDAC Inc.
342-078-559-203
EDAC Inc.

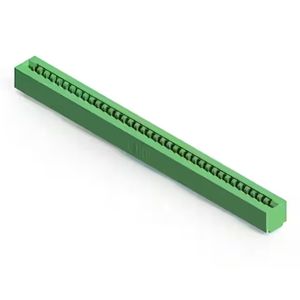

307-074-520-201
EDAC Inc.

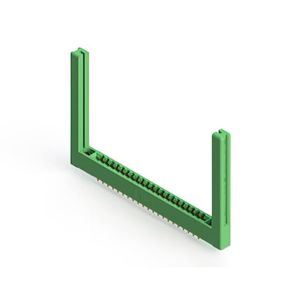

305-042-521-558
