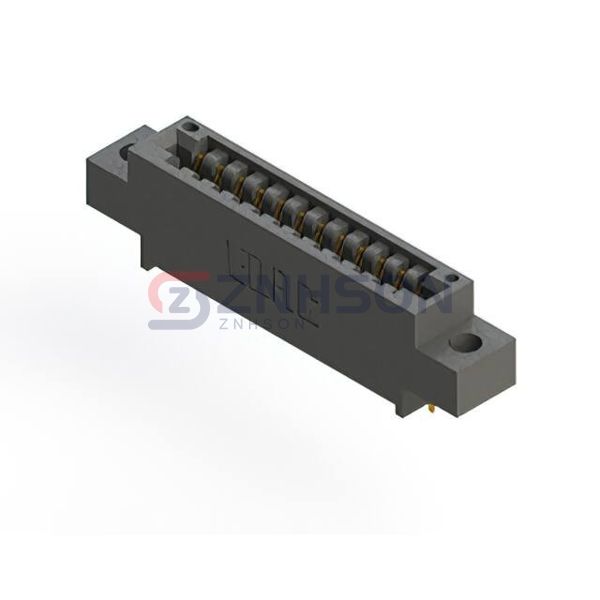

396-012-520-604
EDAC Inc.
EDAC Inc.
CONN EDGE SGL FMALE 12POS 0.125
$8.63
Available to order
Reference Price (USD)
1+
$8.62560
500+
$8.539344
1000+
$8.453088
1500+
$8.366832
2000+
$8.280576
2500+
$8.19432
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-012-520-604 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 12
- Number of Positions: 12
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
