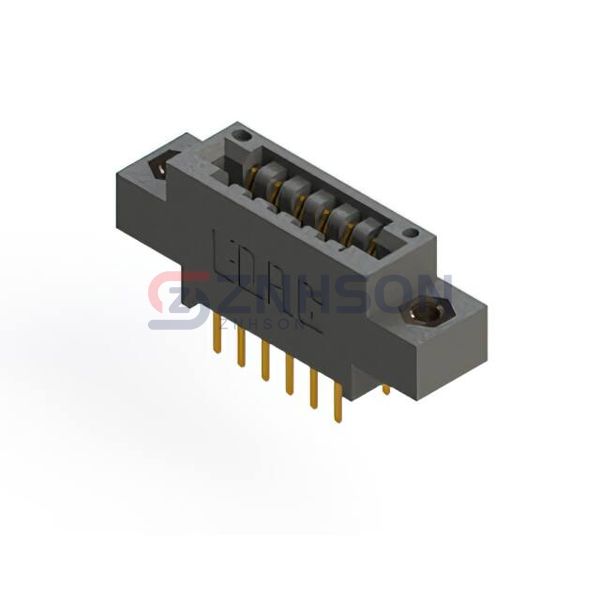

396-012-520-807
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$9.06
Available to order
Reference Price (USD)
1+
$9.05960
500+
$8.969004
1000+
$8.878408
1500+
$8.787812
2000+
$8.697216
2500+
$8.60662
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-012-520-807 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 6
- Number of Positions: 12
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Top Mount Opening, Threaded Insert, M3
- Operating Temperature: -40°C ~ 105°C
