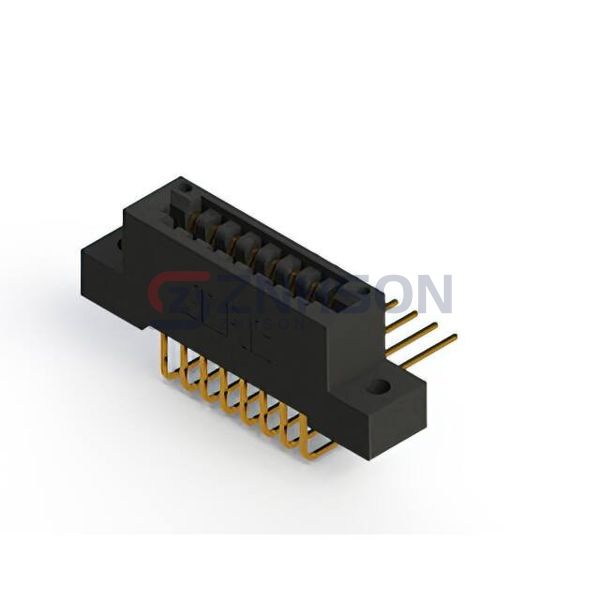

396-016-558-202
EDAC Inc.
EDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
$9.51
Available to order
Reference Price (USD)
1+
$9.51440
500+
$9.419256
1000+
$9.324112
1500+
$9.228968
2000+
$9.133824
2500+
$9.03868
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-016-558-202 series by EDAC Inc. represents the pinnacle of Card Edge Connector technology. Designed for precision and longevity, these Edgeboard Connectors are essential components in medical imaging equipment, broadcast technology, and defense systems. Their robust construction and high-speed capabilities ensure they meet the rigorous demands of these specialized fields.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 8
- Number of Positions: 16
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
395-020-559-878
EDAC Inc.
842-010-523-202
EDAC Inc.
845-066-542-804
EDAC Inc.
345-060-544-688
EDAC Inc.
337-039-523-608
EDAC Inc.
845-024-540-502
EDAC Inc.
395-044-542-658
EDAC Inc.

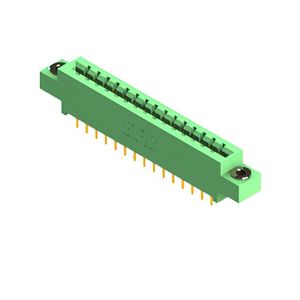

337-030-540-803
EDAC Inc.

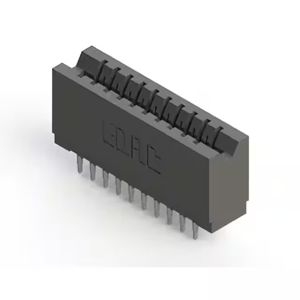

746-020-520-606
