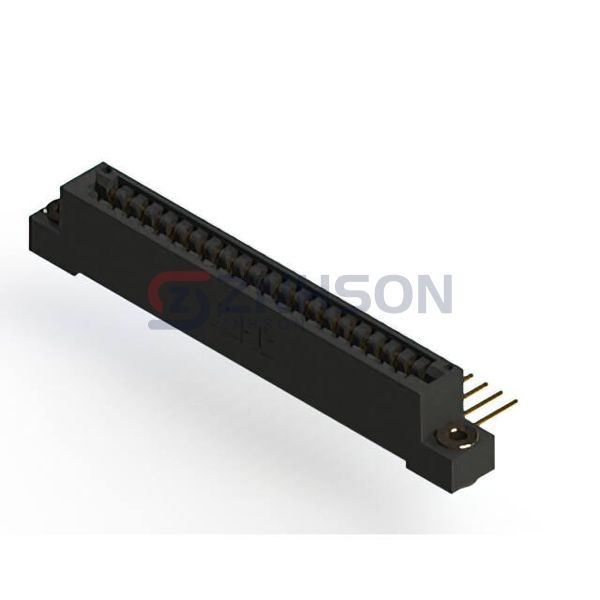

396-022-559-103
EDAC Inc.
EDAC Inc.
CONN EDGE SGL FMALE 22POS 0.125
$13.86
Available to order
Reference Price (USD)
1+
$13.85720
500+
$13.718628
1000+
$13.580056
1500+
$13.441484
2000+
$13.302912
2500+
$13.16434
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-022-559-103 Edgeboard Connectors by EDAC Inc. offer a superior connection solution for today's advanced electronic systems. With their high-temperature resistance and excellent mating cycle life, these Card Edge Connectors are perfectly suited for use in power supplies, LED lighting, and HVAC controls. Choose EDAC Inc. for connectors that deliver both performance and peace of mind.
Specifications
- Product Status: Active
- Card Type: Non Specified - Single Edge
- Gender: Female
- Number of Positions/Bay/Row: 22
- Number of Positions: 22
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 1
- Pitch: 0.125" (3.18mm)
- Read Out: Single
- Features: -
- Mounting Type: Through Hole, Right Angle
- Termination: Solder, Wire Wrap
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
