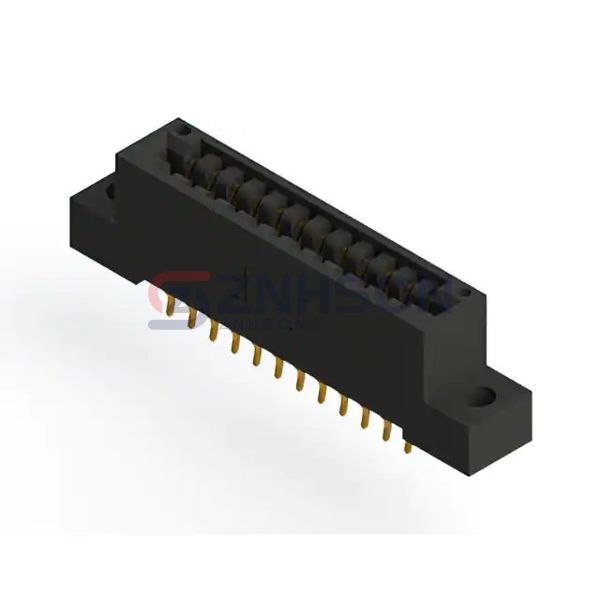

396-024-556-204
EDAC Inc.
EDAC Inc.
396 SERIES (.125" (3.18MM) CONTA
$9.47
Available to order
Reference Price (USD)
1+
$9.46880
500+
$9.374112
1000+
$9.279424
1500+
$9.184736
2000+
$9.090048
2500+
$8.99536
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 396-024-556-204 Edgeboard Connectors by EDAC Inc. offer a superior connection solution for today's advanced electronic systems. With their high-temperature resistance and excellent mating cycle life, these Card Edge Connectors are perfectly suited for use in power supplies, LED lighting, and HVAC controls. Choose EDAC Inc. for connectors that deliver both performance and peace of mind.
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 12
- Number of Positions: 24
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.125" (3.18mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Cantilever
- Color: Black
- Flange Feature: Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature: -40°C ~ 105°C
